The termination box MOTB-001 is suitable to connect the drop cable (or pigtails) to the raiser fibers splices. MOTB-001 is for indoor wall mounting, easy for installation and maintenance.

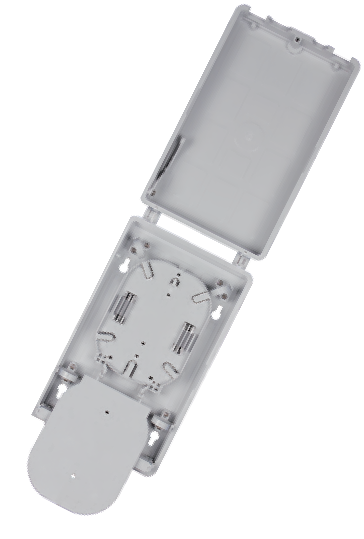

MOTB-001 Wall-mounting Termination Box
- Light weight, small size, easy installation
- Provide splice connection protection of fiber cable and pigtail
- Suitable for SC or duplex LC adapters
- Made of engineering plastic material, which has mechanical strength, reliable and long lasting
- Slide-N-Lock fiber optic splice tray with its opening angle above 90°
- Max.capacity 48 fibers
Technical specification:
|
Model |
Cable ports |
Splice trays |
Max. fiber count |
Adaptors |
|
MOTB-001 |
3 ports, 1 port for cable with max Φ16mm, 2 port for cable max Φ11mm |
4 |
48 |
No |
|
MOTB-001-8SC |
3 ports, 1 port for cable with max Φ16mm, 2 port for cable max Φ11mm |
1 |
12 |
8 x SC SX or |
- Widely used in FTTH access network
- Telecommunication networks
- Data communications networks
- Local Area networks
CMS_02-24_EN-MOTB-001
