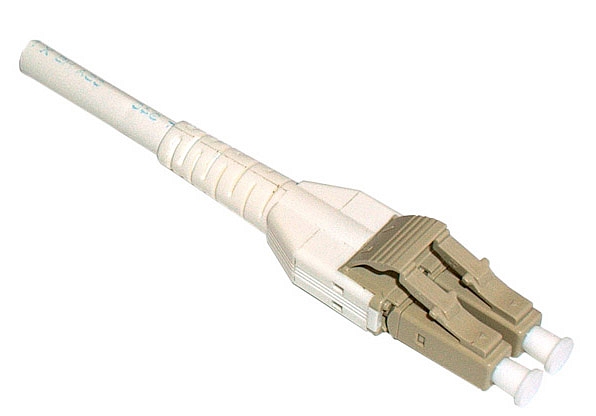

The innovative LC design offers a form factor one-half the size of current industry standards, and simple features create a new definition of user-friendliness.
The LC connector is manufactured to meet EIA/TIA 568A, FOCIS 10, IEC 61754-20 and CENELEC specifications for optical performance and intermateability. The LC Duplex fits into the RJ-45 standard cutout and uses the smallest diameter cable jacket in the industry.
| Insertion loss (IL) | MM – 0.3 dB, SM – 0.5 dB |
| Return loss (RL) | 55 dB – UPC, 65 dB – APC |
| Strain relief | 90 N |
| Operating temperature | -40 °C to +85 °C |
| Durability | min 1000 cycles |
| Assembly procedure | glue and polish |
| Connection | physical contact |
| Lock mechanism | snap-on |
| Standards | ISO/IEC 11801, TIA 568A, IEC 61754-20, CENELEC |
| Ferrule material | full ceramic zirconia |
| Connector material | thermoplastic |
