The 155Mbps series are hot pluggable 3.3 V Small-Form-Factor (SFP) duplex, Bidirectional and CWDM transceiver modules designed expressly for high speed communication applications that require rates of up to 155 Mbps. Tranceivers are compliant with the Fast Ethernet, ATM, SONET OC 3/SDH STM 1 standards. The 155 Mbps transceivers are manufactured with LC (SC) receptacle that is compatible with the industry LC (SC) connector standard. All SFP transceivers have the digital diagnostic monitor feature and are compatible with SFP MSA and SFF-8472.

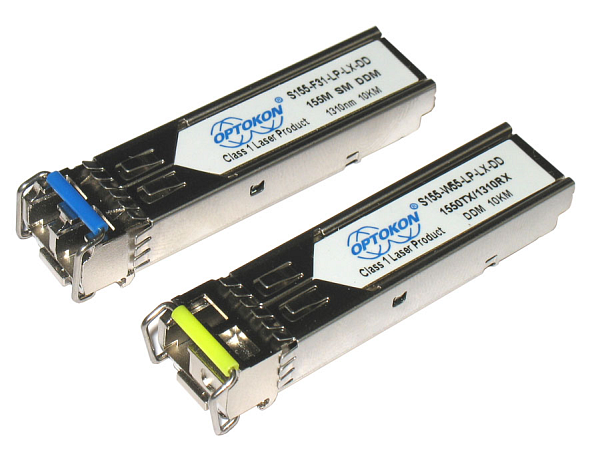

SFP Transceivers – 155Mbps
- Small-Form-Factor (SFP) duplex
- Bidirectional and CWDM transceiver modules
- Rates of up to 155 Mbps
- Compatible with SFP MSA and SFF-8472
|
|
Unit |
SX |
LRM |
LX |
HX |
ZX |
UX |
|
Average output power (min / max) |
dBm |
-9 / -3 |
-20 / -14 |
-15 / -8 |
-7 / -2 |
-5 / 0 |
-2 / 3 |
|
Receiver sensitivity |
dBm |
-24 |
-28 |
-32 |
-32 |
-33 |
-34 |
|
Overload |
dBm |
-6 |
-3 |
-8 |
-10 |
-10 |
-10 |
|
Maximum distance |
km |
0.550 |
2 |
20 |
40 |
80 |
120 |
|
Fiber type |
- |
MMF |
MMF |
SMF |
SMF |
SMF |
SMF |
|
Optical link budget |
dBm |
15 |
8 |
14 |
25 |
28 |
32 |
|
Wavelength / laser type |
nm |
850/VCSEL |
1310 / FP |
1310 / FP |
1310 / FP 1550 / DFB |
1550 / DFB |
1550 / DFB |
Table 1: Basic technical specifications according to distance
- High speed communication applications
ACT_29-12_EN-SFP-155M
