SMA connectors are specially designed for multimode data communication applications. SMA connectors are fully compatible with existing SMA hardware.

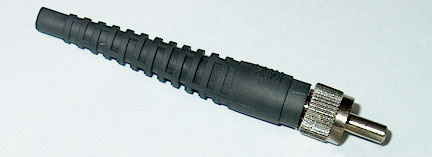

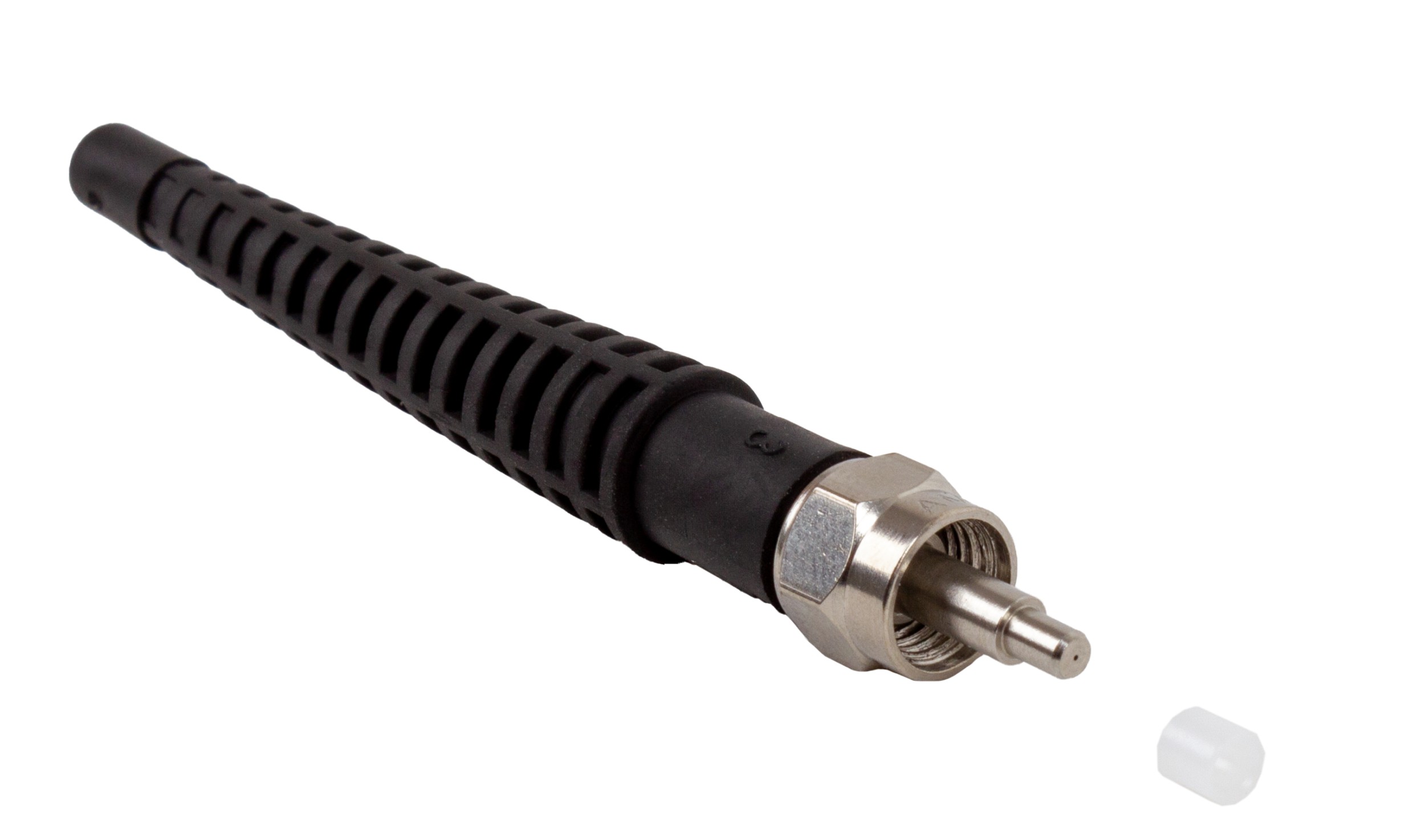

SMA Patchcord
- SMA compatible
- High precision pre-polished ceramic or metal ferrule
- Precision controlled ferrule length
- Long, short and 900 µm buffered fiber boot styles
- Metal or polymer coupling nut
- Field installable
| Insertion loss (IL) | typ. 0.50 dB |
| Strain relief | 100 N, conditioned by cable type |
| Operating temperature | -20°C to +80°C, conditioned by type of cable |
| Durability | min. 1000 cycles |
| Assembly procedure | glue and polish |
| Connection | air-gap |
| Lock mechanism | coupling nut |
| Standards | IEC 874-2 |
| Material | |
| Coupling Nut | stainless steel or polymer |
| Rear Body | zinc alloy, nickel plated |
| Ferrule Material | ceramic zirconia or metal |
| Crimp Sleeve | brass, tin plated |
| Boot and Dust Cover | thermoplastic rubber (flame retardant) |
- Local Area Networks (LAN's)
- Data processing networks
- Active device termination
- Premise installations
- Instrumentation
CON_09-01_EN-SMA_Patchcord
