The cable is suitable for aerial use.
Ieal for pole-to-pole or building-to-building runs in aerial pathways.

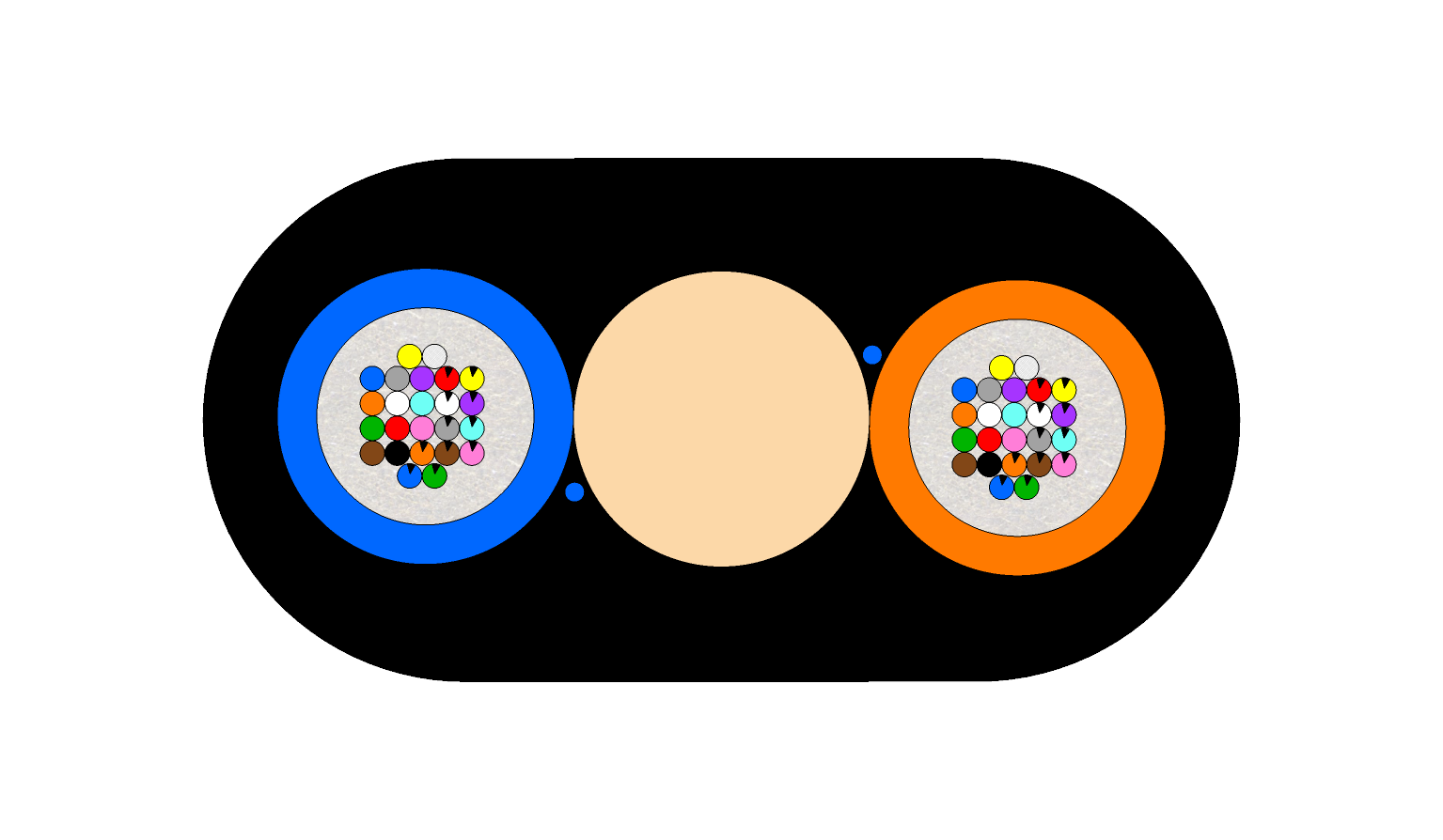

ADSS Flat Cable GC 48F
| Fiber count | Up to 48 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, OM1, OM2, OM3, OM4 |
| Fiber colour | 1-12 Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| 13-24 BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS | (BS Black strip) |
| Tube | Gel-Filled PBT buffer tube |
| Tube colour | Blue, Orange |
| Filling compound | Low-viscosity filling gel |
| Strength member | FRP Rod |
| Ripcord | 2x under outer jacket |
| Outer jacket | UV resistant black HDPE |
| Cable outer diameter | 5.3×10.5 [mm] |
| Max. Tensile Loading (Short Term) | 2500 [N] EN 60794-1-21-E1 |
| Max. Tensile Loading (Long Term) | 900 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 2500 [N/100mm] EN 60794-1-21-E3 |
| Max. Impact loading | 10 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius (not load) | 250 mm [OD] EN 60794-1-21-E11 |
| Min. bend radius (load) | 300 mm [OD] EN 60794-1-21-E11 |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -15 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 59 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Marking Method | Ink-Jet |
| Print legend | OPK –cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2100 m±5% on plywood reel or solid wooden non-returnable drum |
