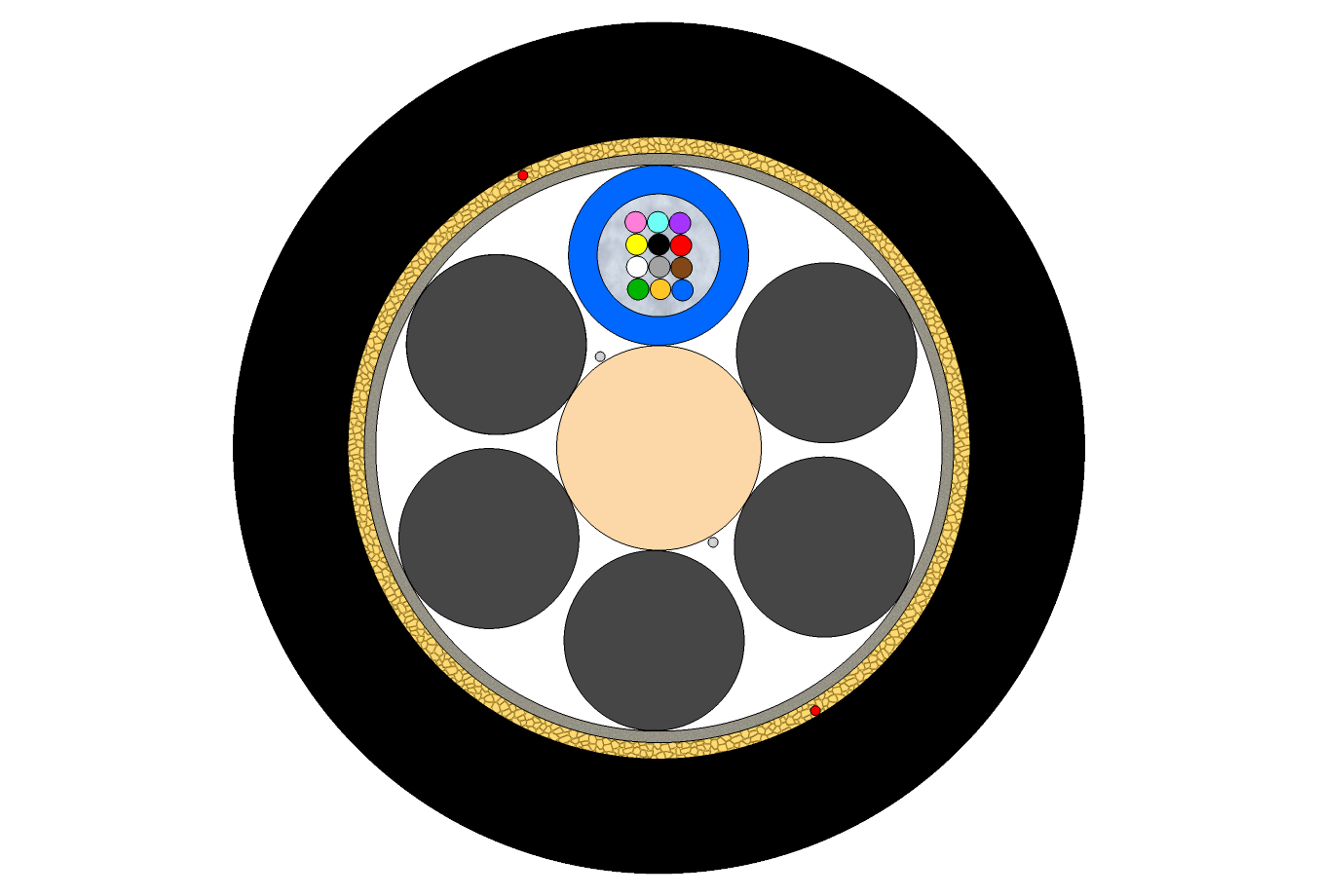

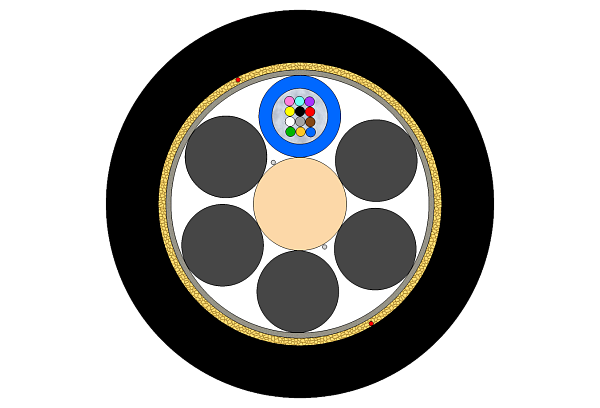

OPK-O-MTFDA-12(6x2.2)LTAP

Fiber Type	G.652.D, G.657.A1, G.657.A2
Fiber color	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
Tube	Gel-Filled PBT buffer tube
Tube color	Blue
Tube filling compound	Low-viscosity filling compound
Central strength member	FRP rod
Core wrapping	Water-swellable tape
Peripheral strength members	Water-swellable glass yarns
Ripcord	2x under outer jacket
Outer jacket	UV resistant black HDPE
Outer jacket thickness	1.4 mm

Nominal outer diameter	10.4	[mm]
Maximum allowable tension	4520	[N]
Maximum operational tension	2540	[N]
Temperature coefficient	13.7	[ppm/k]
Modulus	10.26	[GPa]
Max. compressive loading	1500	[N/10cm]
Max. Impact loading	10	[Nm]
Min. bend radius not load	15	[OD]
Min. bend radius load	20	[OD]
Operating temperature range	-45 to +70	[°C]
Storage temperature range	-45 to +70	[°C]
Installation temperature range	-15 to +50	[°C]
Cable Weight (calc.)	79	[kg/km]
Class of fire reaction	Fca
