Fibre optic cable with full protection against rodents for direct burial installation.

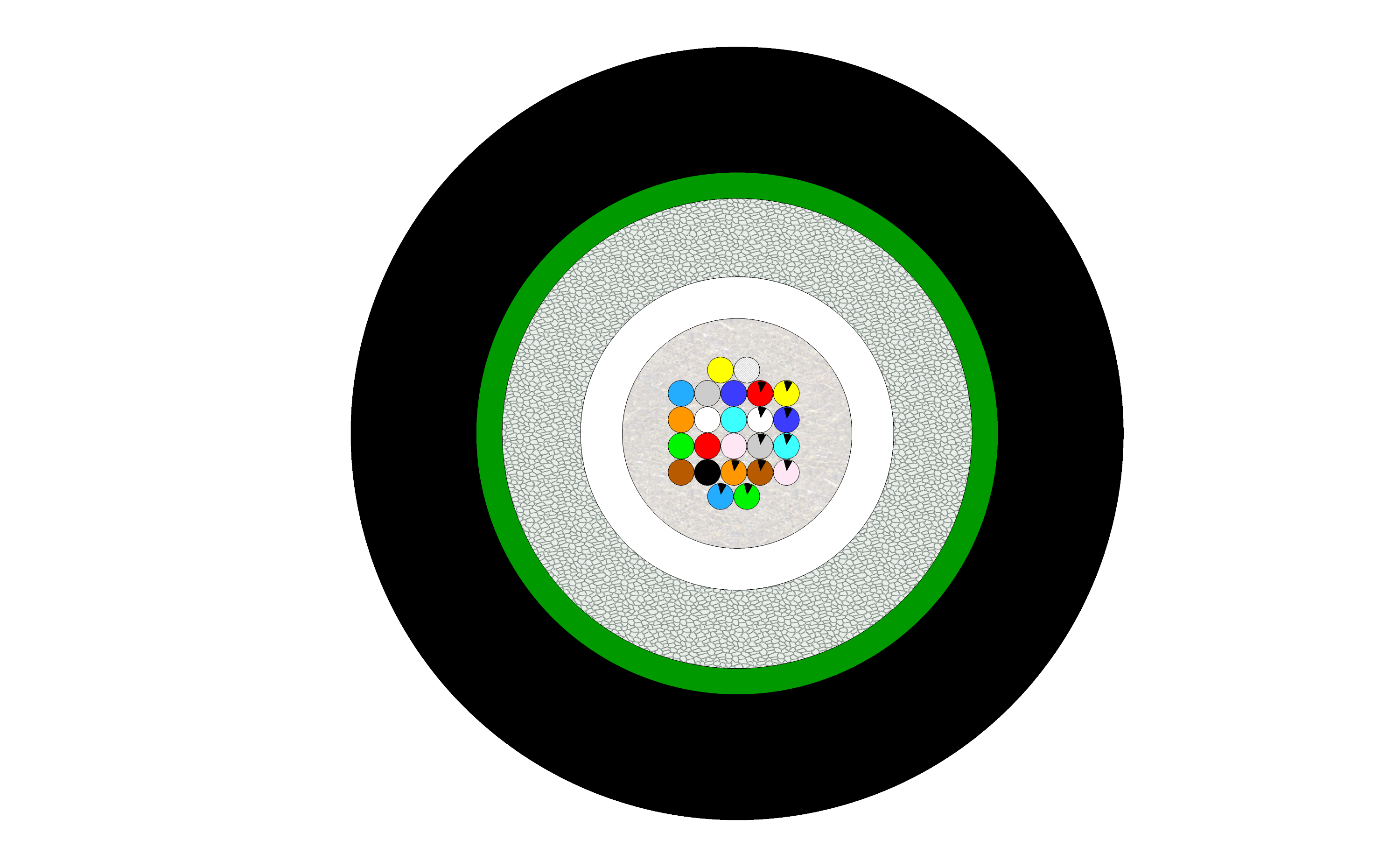

Outdoor CST armoured Unitube Cable (GC)
| Fiber count | Up to 24 |
| Fiber Type | G.652.D, G.657.A1, G.655, OM1, OM2, OM2+, OM3, OM4 |
| Fibre colour 1-12 | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Fibre colour 13-24 | BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS |
| Tube | Gel-Filled PBT buffer tube |
| Tube colour | Natural / White |
| Filling compound | Thixotropic Jelly Compound |
| Peripheral strength members | Water-swellable Glass yarn |
| Armouring | Corrugated steel tape, longitudinally under jacket |
| Outer jacket | UV resistant black HDPE |
| Outer jacket thickness | 1.2 mm |
| (BS | Black strip) |
| Nominal outer diameter | 7.5 [mm] |
| Tube diameter | 3.0 [mm] |
| Max. Tensile Loading (Short Term) | 1000 [N] EN 60794-1-21-E1 |
| Max. Tensile Loading (Long Term) | 250 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 3000 [N] EN 60794-1-21-E3 |
| Max. Impact loading | 20 [Nm] EN 60794-1-21-E4 |
| Min. bend radius not load | 15 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 20 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -30 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -5 to +50 [°C] EN 60794-1-22-F1 |
| Class of fire reaction | Fca EN 13501-6 |
| Print legend | Manufacturer - Cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2100 m, 4200, 8400 m ±5% on plywood reel |
0028_OPK-O-CTFS-24(1x3.0)LTGXP
