Products developed the SFP+ to SFP+ Active Optical Cable to provide an affordable, high- performance, low power approaches when connecting point-to-point or rack-to-rack. The SFP+ to SFP+ Active Optical Cable provide data rates of up to 11.3 Gbps and at distances of up to 150m (OM3) meters. AOC is electrically hot-pluggable compliant to SFF-8431 and RoHS.

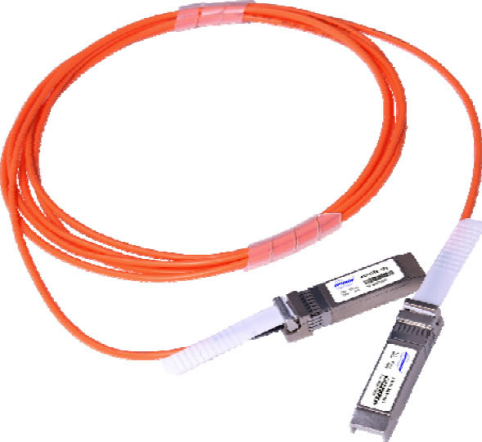

Active Optical Cable - 10 Gbps SFP+
- Low power consumption
- Compliant to SFP+ Mechanical MSA SFF-8432
- Multi rate of up to 11.3Gbps
- +3.3V single power supply
- AOC is electrically hot-pluggable compliant to SFF-8431 and RoHS
- 10GBASE-SR at 10.31Gbps
- InfiniBand QDR, SDR, DDR
- 10G Fiber channel
- HPC Interconnections
- Other optical links
ACT_07-15_EN-AOC-10Gbps
