The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fibre Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry standard requirements for performance and reliability.

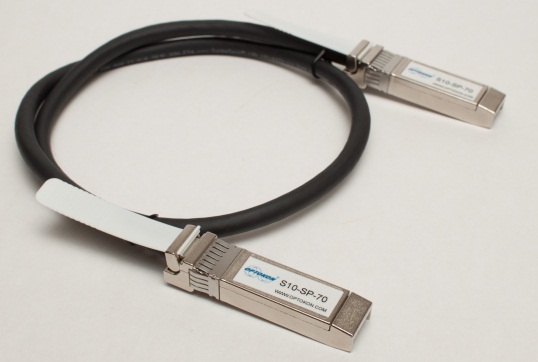

S10-SP 10Gb/s SFP+ Direct Attach Passive Cable
- Support for multi-gigabit data rates up to 10.5Gbps
- Data rates backward compatible to 1Gbps
- Hot-pluggable SFP 20 PIN footprint
- Copper link length up to 10 m
- I/O Connector designed for high speed differential signal applications
- Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
- Compatible to SFP+ MSA
- Temperature Range: 0～70°C
- RoHS compliant
Recommended operating environment:
|
Parametr |
Min. |
Max. |
|
Storage Ambient Temperature |
- 40 °C |
+ 85 °C |
|
Operating Case Temperature |
0 °C |
+ 70 °C |
- High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
- Switched fabric I/O such as ultra high bandwidth switches and routers
- Data center cabling infrastructure
- High density connections between networking equipment
ACT_09-09_EN-SFP+passive
