RJ-SP-10GBASE-T 10G Copper SFP+ Transceiver
docx_2310a6858fb6cb01e5929662193014b0

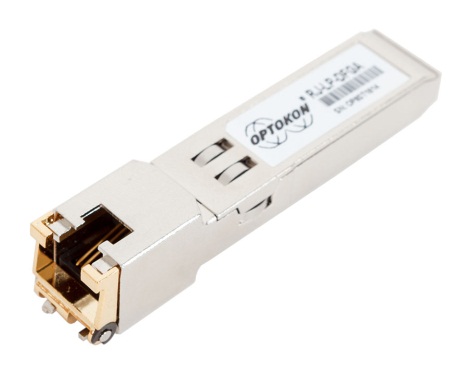

RJ-SP-10GBASE-T 10G Copper SFP+ Transceiver

OPTOKON’s RJ-SP-10GBASE-T Copper Small Form Pluggable (SFP+) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10 Gigabit Ethernet and 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T standards as specified in IEEE Std 802.3.

RJ-SP-10GBASE-T uses the SFP's RX_LOS (must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.

  • Features
  • Specifications
  • Application
  • Documents
  • Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000Base-T on line port
  • Support 10Gbase-R on host port
  • Hot-pluggable SFP footprint
  • Low power dissipation (max. 4.0 W)
  • Compact RJ-45 connector assembly
  • Fully metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Single +3.3 V power supply
  •  10 Gigabit Ethernet over Cat 6A/7 cable
  • Case operating temperature
    Commercial: 0°C to +70°C
    Industrial:  -40°C to +85°C

Environmental Specifications:

Name

Min

Max

Notes/Conditions

Operating Temperature

0°C, - 40°C

+70°C, +85°C

Case temperature

Storage Temperature

-40°C

+85°C

Ambient temperature

- 10GBASE-T        5GBASE-T            2.5GBASE-T        1000BASE-T
