Outdoor fiber optic cable for installing into ducts or on grids.

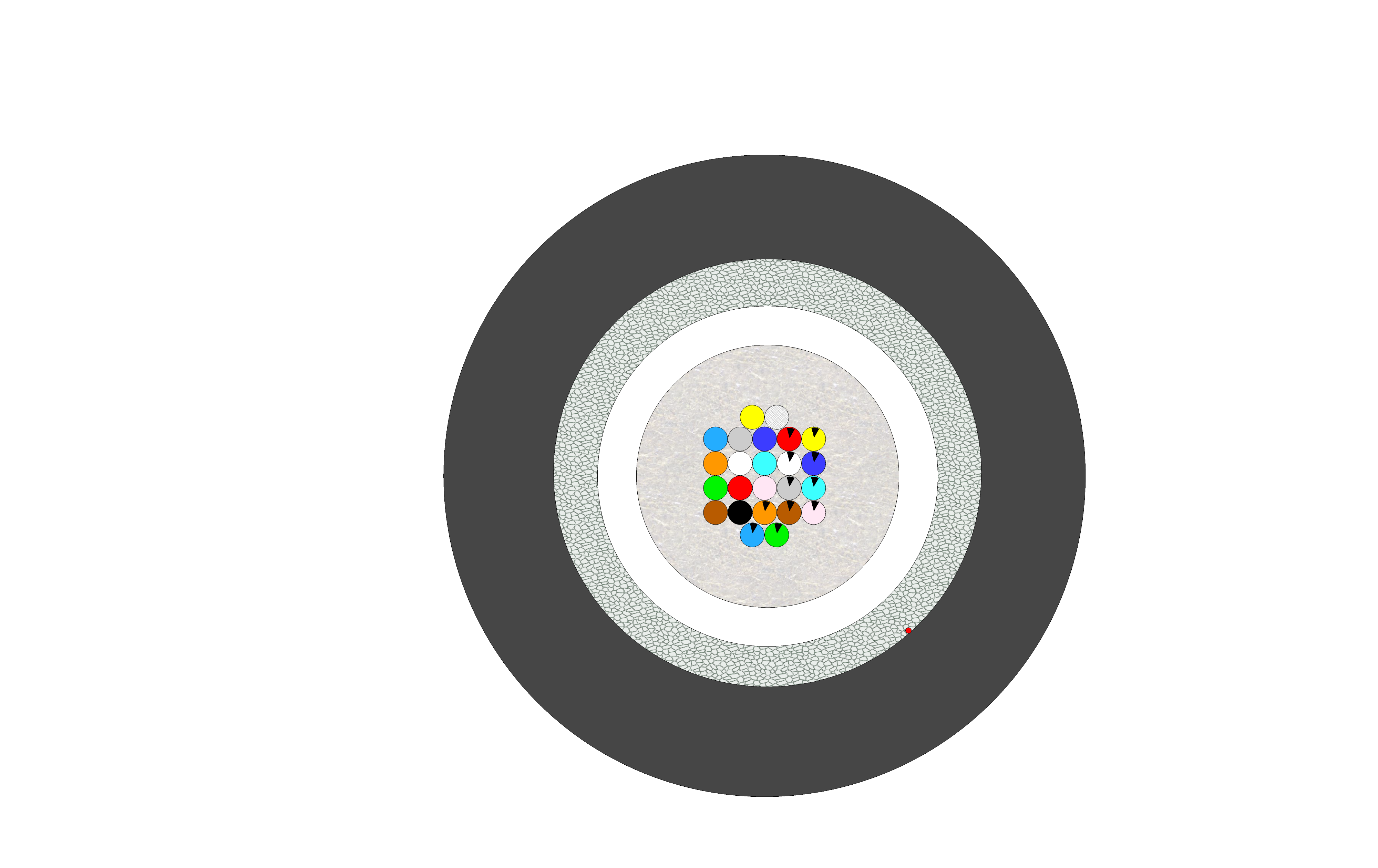

Outdoor glass yarn protected Unitube Cable (BT) 1200N
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour | EIA/TIA-598A |
| Tube colour | Natural / White |
| Filling compound | Low-viscosity filling gel |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket material | Black UV resistant Halogen-free flame-retardant thermoplastic compound |
| Number of fibres | 16 | 24 | ||
| Number of fibres in tube | 16 | 24 | ||
| Tube count (layers) | 1 | 1 | ||
| Tube diameter (mm) | 3.5 | |||
| Cable outer diameter (mm) | 6.5 | |||
| Outer jacket thickness (mm) | 1.2 | |||
| Calc. cable weight (kg/km) | 35 | |||
| Short-term tensile strength (N) | 1200 | IEC 60794-1-101 | ||
| Long-term tensile strength (N) | 380 | IEC 60794-1-101 | ||
| Short-term crush resistance (N/100 mm) | 1000 | IEC 60794-1-103 | ||
| Long-term crush resistance (N/100 mm) | 300 | IEC 60794-1-103 | ||
| Max. impact loading (Nm) | 10 | IEC 60794-1-104 | ||
| Min. bend radius not load (OD) | 10 | IEC 60794-1-111 | ||
| Min. bend radius load (OD) | 20 | IEC 60794-1-111 | ||
| Operating temperature range (°C) | -20 to +70 | IEC 60794-1-201 | ||
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 | ||
| Installation temperature range (°C) | -15 to +50 | IEC 60794-1-201 | ||
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 | ||
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
0018_Outdoor Glass Yarn Protected Unitube Cable (BT) 1200N
