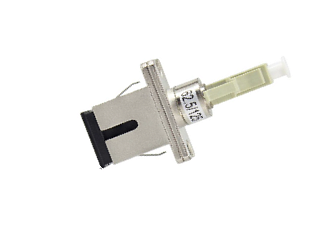

Converting Adapters

Conversion – hybrid adapters are a solution for hybrid applications where new SFF (Small Form Factors) need to be inserted into existing environments or need to mate with one another. The innovative space-saving design and highprecision coupling systems ensure reliable mating with low insertion loss and high return loss characteristics. Converting adapters are available standard in SC-LC, SC-FC, SC-ST, ST-LC, FC-LC versions. OPTOKON can also develop custom conversion adaptors upon request.



  • Female to Male
  • Types: FC-LC, FC-SC, FC-ST, SC-ST, SC-LC, LC-ST
  • Good compatibility
  • High precision of mechanical dimensions
  • High reliability & stability
  • PC, APC, UPC optional
  • Insertion Loss < 0.30 dB
  • Mating repeatability < 0.2 dB for 500 mates
  • Operating temperature -40 °C to +85 °C





Available types of Male-Female version:

SC female / LC male SC female / ST male LC male / ST female SC male / ST female
SC female / FC male LC female / SC male LC female / ST male LC female / FC male
SC male / FC female ST male / FC female FC male / ST female NSC male / USC female

Reliable mating with low insertion loss and high return loss characteristics.
