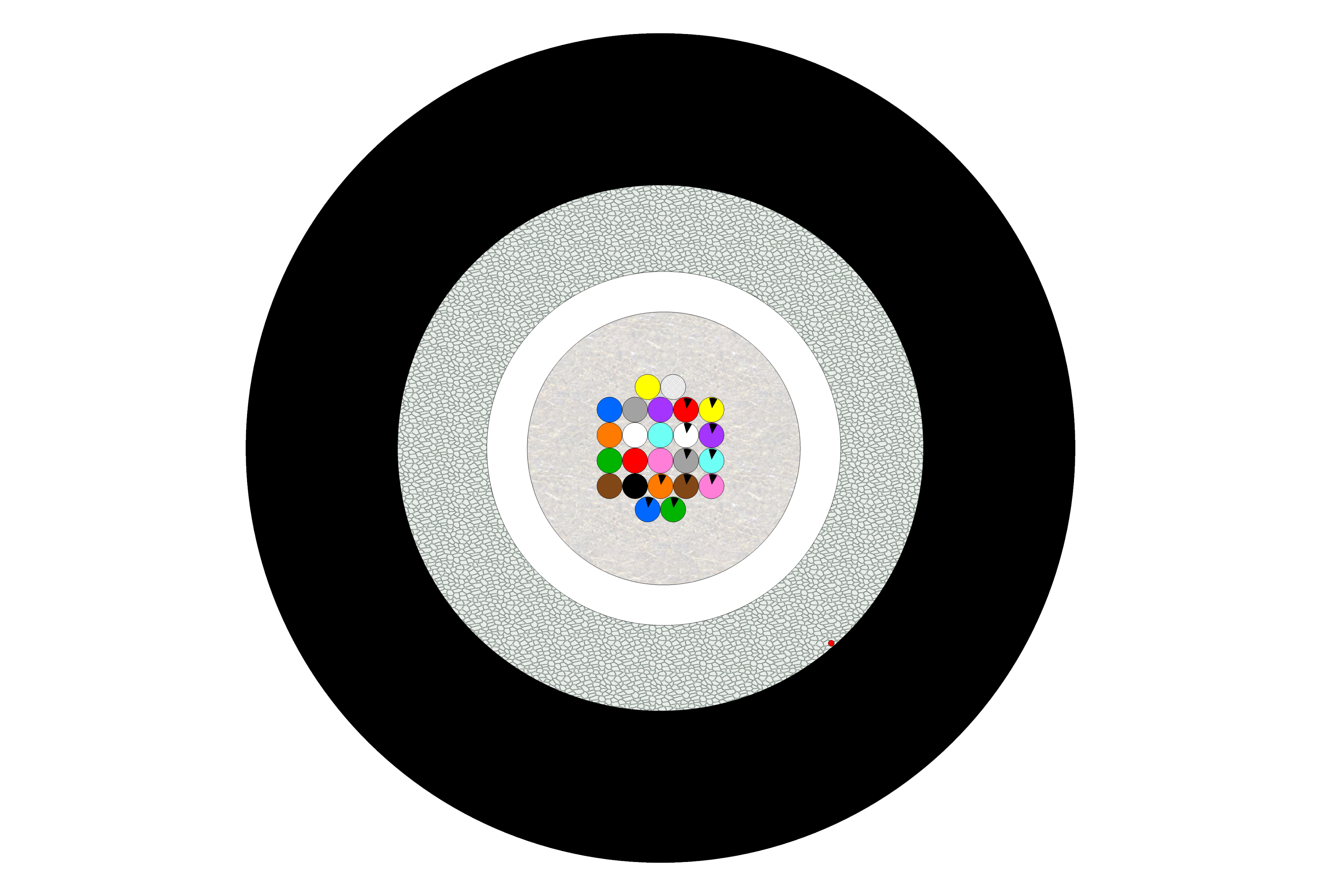

Outdoor glass yarn armoured Unitube Cable (BT) 3100N

ISO Certified

EN ISO 9001:2015
EN ISO 14001:2015
ČOS 051672 (AQAP 2110) Certified

Calibration Laboratory

Accredited Calibration Laboratory No. 2315
In Czech Republic & Malaysia

Testing Laboratory

Accredited Testing Laboratory No. 1755

NATO Supplier

OPTOKON NATO
Supplier Code: 1583G

National Security Certified

National Security Authority Certified: CONFIDENTAL

Member Of Cenelec

Member of CENELEC European Comittee for Electrotechnical Standardization

AOBP

Member of Defence and Security Industry Association

Chamber of Commerce

Member of the Czech Chamber of Commerce

STI Industry Partner

OPTOKON is a CISCO Solution Technology Integrator

Fibre count	16 - 24
Fibre Type	G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5
Fibre colour 1-12	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
Fibre colour 13-24	Blue^BS, Orange^BS, Green^BS, Brown^BS, Grey^BS, White^BS, Red^BS, Natural, Yellow^BS, Violet^BS, Pink^BS, Aqua^BS
Tube	Gel-Filled PBT buffer tube
Tube colour	Natural / White
Tube diameter	3.5 mm
Filling compound	Low-viscosity filling gel
Peripheral strength members	Water-swellable Glass yarn
Ripcord	1x under outer jacket
Outer jacket	UV resistant black LDPE
Outer jacket thickness	1.5 mm
Cable outer diameter	8.2 mm
Cable Weight (calc.)	55 kg/km
(^BS Black strip)

Max. Tensile Loading-Short Term	3100 N
Max. Tensile Loading-Long Term	1000 N
Max. compressive loading	2500 N/100mm
Max. Impact loading	15 Nm
Min. bend radius-not load	10 x OD
Min. bend radius-load	20 x OD
Operating temperature range	-20 °C to +70 °C
Storage temperature range	-40 °C to +70 °C
Installation temperature range	-15 °C to +50 °C
Water tightness	No water detected on free end
Class of fire reaction	Fca
