The OPTOKON introducing new effective low cost harsh environment MPO connector series which is designed use in harsh environmental conditions. Preconnectorized cables significantly reduce cable installation time, saving money and accelerating end user connections.

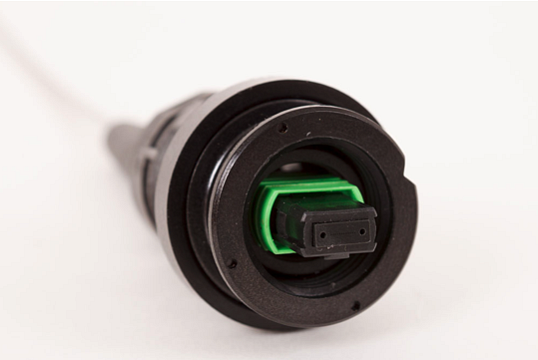

HE-MPO series - MPO ruggedized connector
- Simple locking system
- Low Insertion Loss& Reflection
- Available SM (angled) and MM (flat)

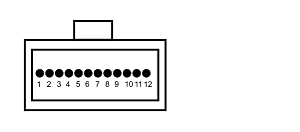

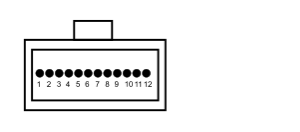

- Up to 12 fibers termination
- Easy connection and disconnection
- No need for matching material
- Proven design provides a hardened connector for outside plant deployment
- Environmentally-sealed connector housing permits rapid connection to external flush-mounted bulkhead adapter
- Robust design keeps connector intact during installation
- Fully standards-compliant product ensures the highest network reliability and durability
|
|
Singlemode (angled 8°) |
Multimode (flat) |
|
Insertion Loss (dB) |
0.50 typ, 0.80 max |
0.30 typ, 0.60 max |
|
Optical Return Loss (dB) |
> 50 |
> 20 dB |
|
Operating Temperature |
-40°C to +80°C |
-40°C to +80°C |
|
Durability |
< 0.30 dB change 500 remates |
< 0.20 dB change 500 remates |
|
Ingress protection |
IP67 |
|
For more detailed information contact our sales department SALES@OPTOKON.COM
