The innovative LC design offers a form factor one-half the size of current industry standards, and simple features create a new definition of user-friendliness.
The LC connector is manufactured to meet EIA/TIA 568A, FOCIS 10, IEC 61754-20 and IEC 11801 specifications for optical performance and intermate ability. The LC Duplex fits into the RJ-45 standard cutout and uses the smallest diameter cable jacket in the industry.

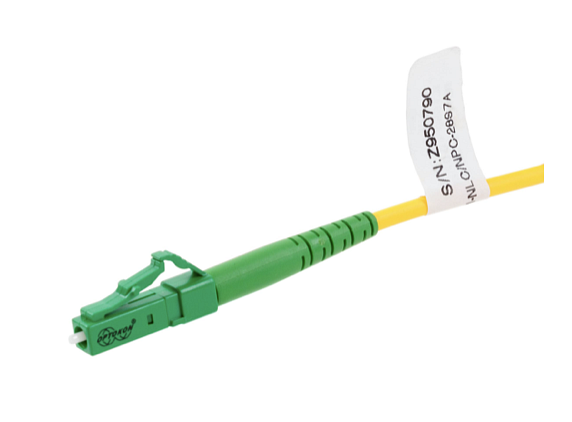

LC Patchcord
- one-half the size of current industry standards
- increases panel density – provides duplex connection in 50% less space
- duplex fits RJ-45 footprint
- available in MM and SM versions with Ultra and Angle (APC) polishing
- user-friendly audible latch to indicate proper mating
- simplex and duplex version available
- pull – proof 1.6 mm simplex mini-cord, 1.6 x 3.2 mm duplex mini zip cable
|
Insertion loss (IL) (IEC 61300-3-4) |
SM Ultra PC Grade B |
SM Angle PC Grade A |
|
|
0.12 dB typ 0.25 dB 97% |
0.06 dB typ 0.15 dB 97% |
||
|
Return loss (RL) (IEC 61300-3-6) |
>50 dB |
>65 dB |
|
|
Strain relief |
70 N |
||
|
Operating temperature |
-10°C to +70°C |
||
|
Durability |
min 1000 cycles |
||
|
Assembly procedure |
glue and polish |
||
|
Connection |
physical contact |
||
|
Lock mechanism |
snap-on |
||
|
Standards |
ISO/IEC 11801, TIA 568A, IEC 61754-20, EN 50377-7 |
||
|
Ferrule material |
full ceramic zirconia |
||
|
Connector material |
thermoplastic |
||
|
Adapter material |
polymer composite, zirconia sleeve |
||
- Telecom
- LAN, WAN
- CATV
- Sensor systems
- Measuring Technique
- Utilities
- Railways
