Master Patchcord

We offer an extensive range of pre-terminated cable assemblies that are 100% tested to ensure conformance with your specifications. These assemblies are used for measuring and manufacturing of fiber optic components and optical network testing.

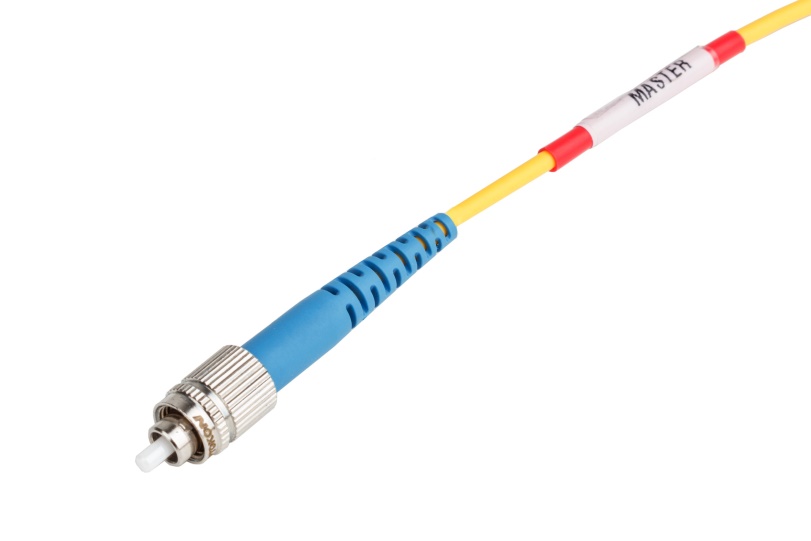

The Master patchcord is equipped with a Master connector according to the specifications below. The master connector is specified with its Serial Number on connector body, which ensures traceability of transmission and geometrical parameters. The second connector is a standard type. For the hybrid patchcord version different types of master and standard connector types are also available.



  • Features
  • Specifications
  • Application
  • Documents
  • ISO 9100 approved
  • 100% Return loss test
  • 100% Visual Inspection
  • 100% Insertion loss test
  • 100% Interferometric test
  • Manufactured to meet IEC/EN Standards
  • Batch tracebility



Single mode

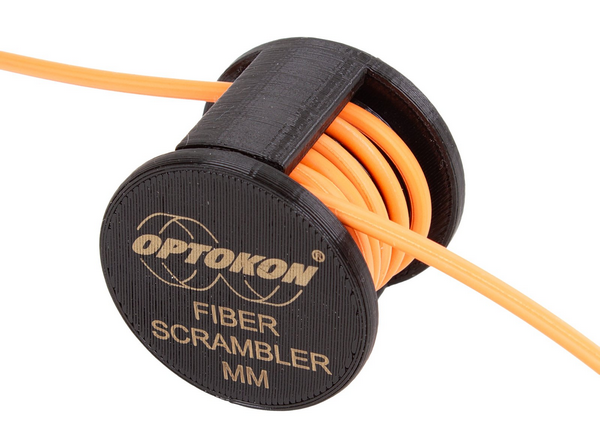

Multimode

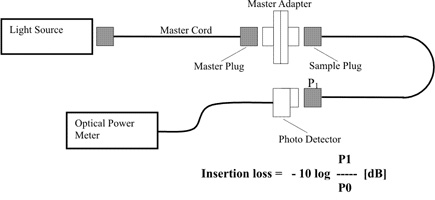

Insertion loss (IL)

≤ 0.1 dB

(λ = 1310, 1550, 1650 nm)

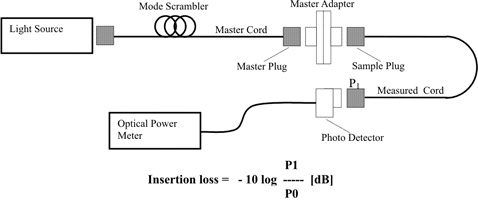

≤ 0.1 dB

(λ = 850, 1300 nm)

Return loss (RL)

UPC ≥ 55 dB, APC ≥ 65 dB

PC ≥ 30 dB

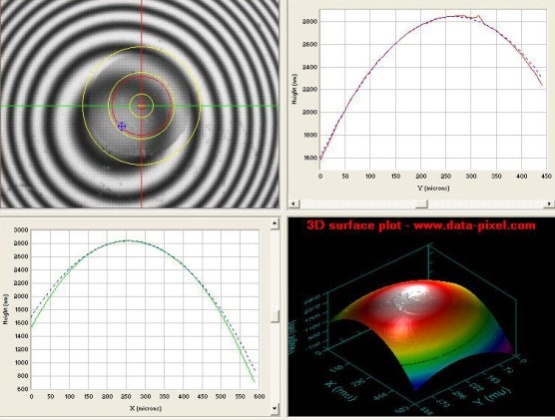

Geometrical parameters:





Eccentricity of core for the center of ferrule

≤ 0.3 / 0.55 µm

N/A

Outer diameter of ferrule

Standard connectors: 2.499 µm



SFF connectors: 1.249 µm

End curve offset

≤25 µm

Fiber height

-30 to +50 nm

End curve radius

Standard connectors: PC polishing 10 – 18 mm



APC polishing 5 – 12 mm



SFF connectors: PC/APC 5 – 12 mm

APC angle

8 ± 0.1°

N/A





Temperature stability (-40°C to +80°C)

< 0.2 dB

< 0.2 dB

Mating durability (500 cycles)

< 0.2 dB

< 0.2 dB

Cable retention5

100 N

100 N







Material:





Connector body

metal, plastic

metal, plastic

Ferrule material

full ceramic zirconia

full ceramic zirconia

Fiber

9/125

50/125; 62.5/125

Crimp sleeve

metal

metal

Boot

rubber

rubber



Measuring and manufacturing of fiber optic components and optical network testing.
