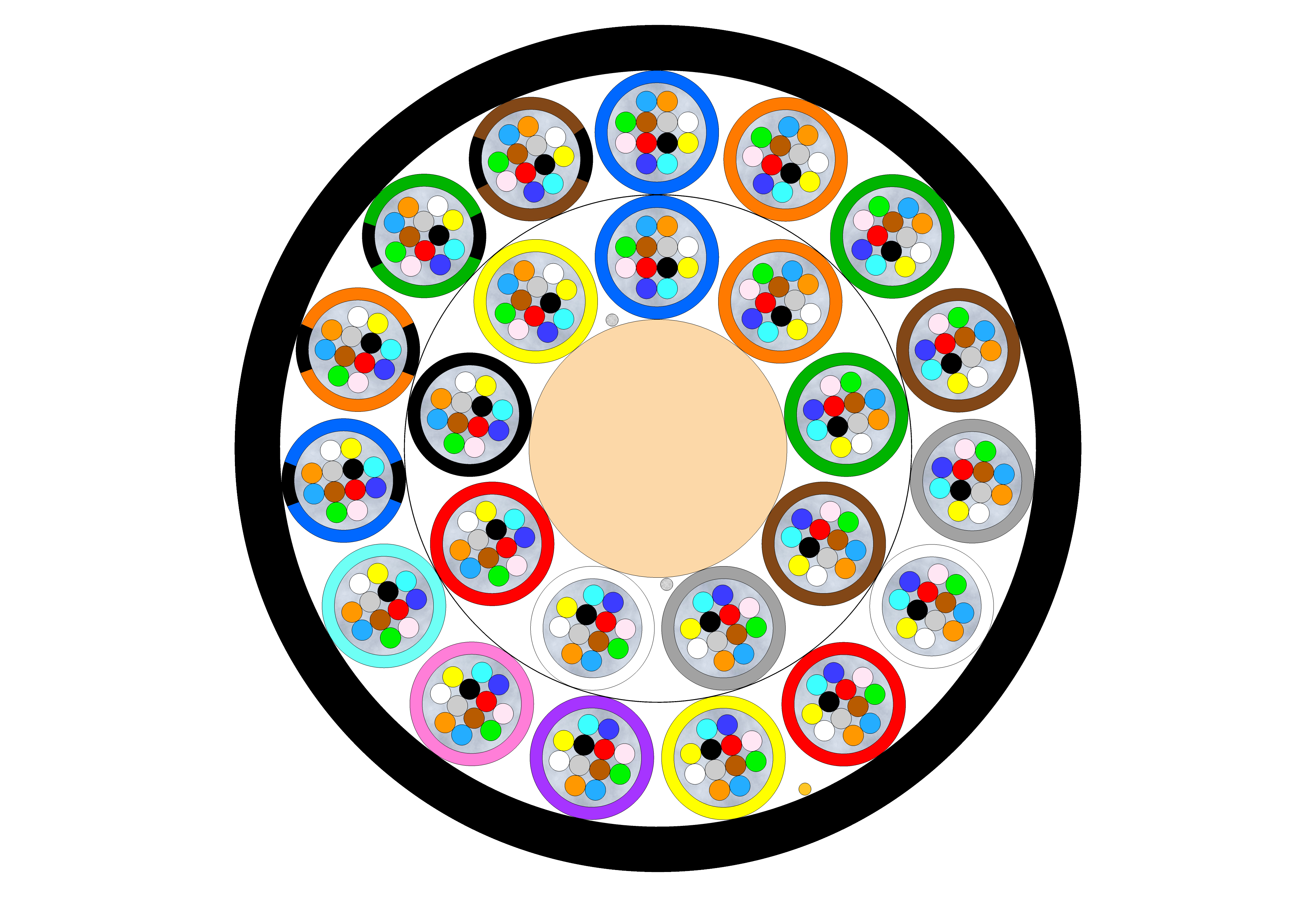

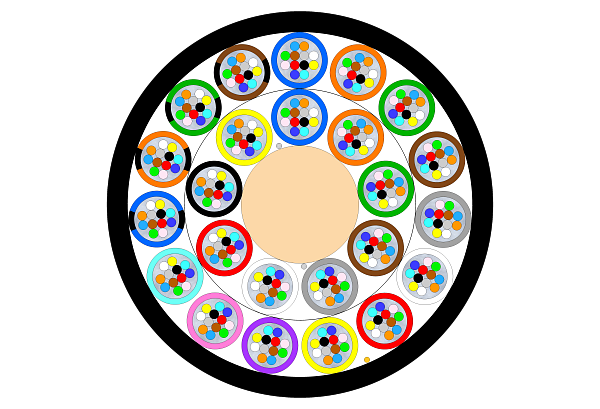

Outdoor Multitube Micro Cable 288F (RD)

Cable for external installation by air-blowing technique

Cable outer diameter	8.2 [mm]
Tube count	24 (9+15)
Filler count	0
Max. Loading (Short Term)	1000 [N]
Max. Loading (Long Term)	120 [N]
Max. compressive loading	200 [N]
Max. Impact loading	2 [Nm]
Min. bend radius not load	15 [OD]
Min. bend radius load	20 [OD]
Operating temperature range	-30 to +70 [°C]
Storage temperature range	-30 to +70 [°C]
Installation temperature range	-10 to +50 [°C]
Cable Weight (calc.)	81 [kg/km]
Class of fire reaction	Fca
Test standards	EN 60793-1, EN 60794-1-21, EN 60794-1-22, EN 13501-6
Cable Code (Ordering Code)	OPK-O-MTFDM-288(24x1.2)LTP-200A1-BK
Marking Method	Ink-Jet
Print legend	OPK –cable type – lot number- length marking per 1 m (customer print legend available on request)
Delivery length	2000 m, 4000 m ±5% on plywood reel or solid wooden non-returnable drum

Fiber count	288
Fiber Type	G.657.A1 200 µm
Fiber color	1-12 Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
13-24 BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS	(BS = Black strip)
Tube	Gel-Filled PBT buffer tube
Tube color – inner layer	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow
Tube color – outer layer	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua, BlueBS, OrangeBS, GreenBS, Brown BS (BS Black strip)
Tube filling compound	Thixotropic Jelly Compound
Central strength member	FRP rod
Ripcord	1x under outer jacket
Outer jacket	UV resistant black HDPE
Outer jacket thickness	0.45 mm

Cable Code (Ordering Code)	OPK O MTFDM 288(24x1.2)LTP 200A1 BK
Marking Method	Ink Jet
Print legend	OPK cable type lot number length marking per 1 m (customer print legend available on request)
Delivery length	2000 m, 4000 m m±5% on plywood reel or solid wooden non returnable drum
