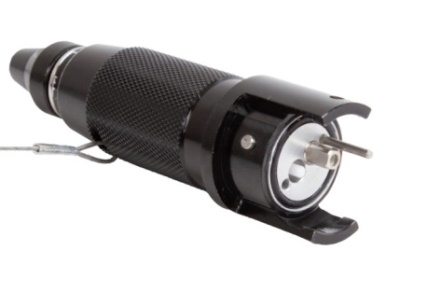

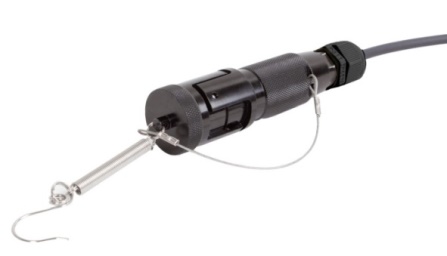

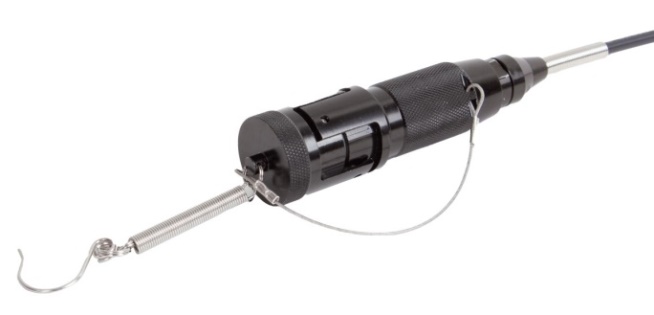

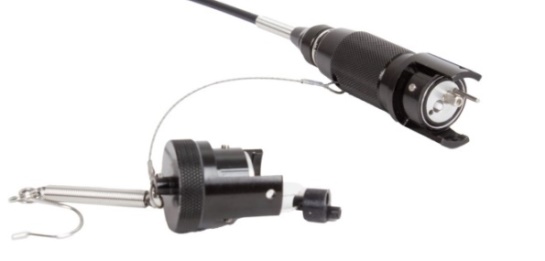

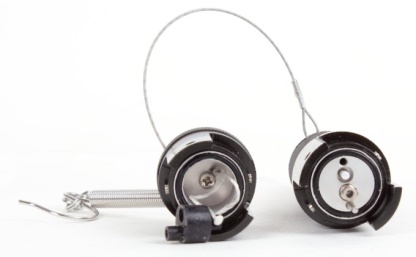

The OPTOKON FCON field fiber optic connectors are designed for military field cables. The neutral bayonet locking structure enables quick and arbitrary connection of the head and the seat, the head and the head, and the seat and the seat. It has multi-core one-time connection and can be blindly inserted; it has small connection loss and high reliability; it is strong, waterproof, dustproof and resistant to harsh environment. It can be used in various field military optical fiber communication networks. Military computer system, Airborne or shipborne equipment, repairing systems, etc. The field light road is temporarily connected.
FCON series
- Ruggedized field design
- Ferrule technology
- Army optical communication network
- Communication vehicle transmission, long-distance space transmission, communication soldier portable transmission tool
- Television teleconference signal transmission for actual combat exercises
- Coal mines, oil wells, natural gas, etc.
- Geological exploration communication
- Broadcast television broadcast
- Emergency fiber optic communication
- Very stable connection
- Up to 12 fiber channels,
- Single mode and/or Multimode
Benefits:
- No adaptors necessary, Connected directly without adapter
- Excellent transmission parameters
|
Fiber Core |
Cable OD |
Weight |
Tensile strength N |
Crush strength N/100mm |
Minimum Bending Radius MM |
Temp |
|||
|
mm |
kg/km |
Long Term |
Short Term |
Long Term |
Short Term |
Dynamic |
Static |
°C |
|
|
2 |
5 |
24 |
600 |
1500 |
700 |
1500 |
20D |
10D |
-40 to +85 |
|
4 |
5 |
24 |
600 |
1500 |
700 |
1500 |
20D |
10D |
|
|
6 |
6 |
31 |
600 |
1500 |
700 |
1500 |
20D |
10D |
|
|
8 |
6 |
40 |
600 |
1500 |
70 |
1500 |
20D |
10D |
|
|
12 |
5 |
24 |
600 |
1500 |
70 |
1500 |
20D |
10D |
|
| Insertion loss | SM | ≤ 0.5 dB (typ. ≤ 0.25 dB) |
| MM | ≤ 0.5 dB (typ. ≤ 0.25 dB) | |
| Return loss | SM | ≥ 50 dB |
| Mechanical resistance | Plug | ≤ 1000 N (trunk cable) |
| Socket | ≤ 100 N (conversion cable) | |
| Protection level | IP67 | |
| Optical cable | OPK-U-DSTTAC, 2-12 fibers in Tight Buffer 0.9 mm, | |
| Cable Diameter | 4.0 – 6.0 mm | |
| Cable Jacket | TPU | |
| Tensile unit | kevlar | |
| Tensile strength | 1100 N | |
| Operating temperature | -40℃ to 85℃ |
- Field communications
- Telecoms
- Surveillance
- Broadcast
STR_02-19_EN-FCON
