Multitube micro cable for external installation by air-blowing technique

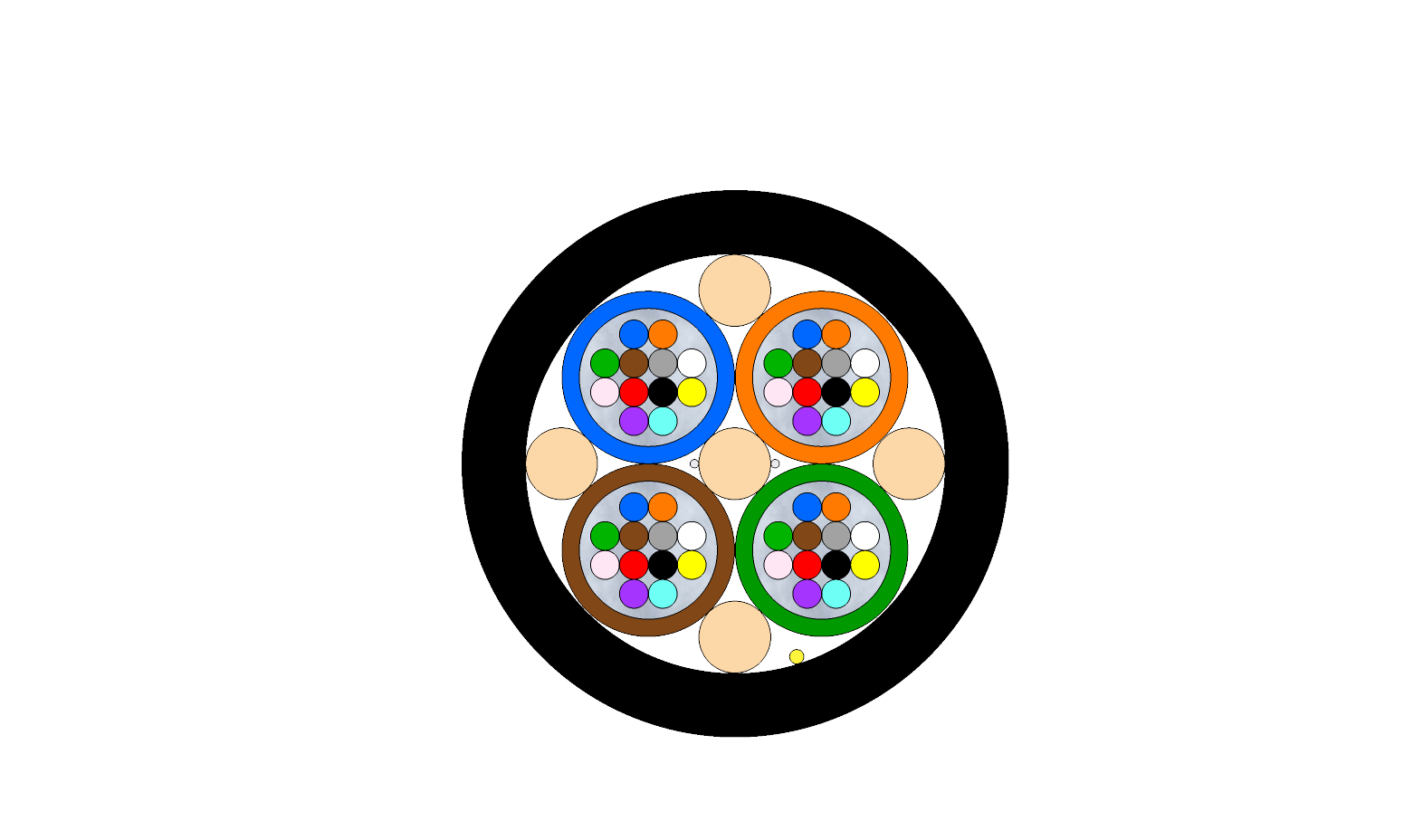

Outdoor Multitube Micro Cable 48F (RD)
|
Number of fibres |
48 |
|
|
Number of fibres in tube |
12 |
|
|
Tube count (layers) |
4 |
|
|
Nominal outer diameter (mm) |
3.8 |
|
|
Calc. cable weight (kg/km) |
12 |
|
|
Short-term tensile strength (N) |
400 |
IEC 60794-1-101 |
|
Long-term tensile strength (N) |
150 |
IEC 60794-1-101 |
|
Crush resistance (N/100 mm) |
500 |
IEC 60794-1-103 |
|
Max. impact loading (Nm) |
3 |
IEC 60794-1-104 |
|
Min. bend radius not load (OD) |
10 |
IEC 60794-1-111 |
|
Min. bend radius load (OD) |
25 |
IEC 60794-1-111 |
|
Operating temperature range (°C) |
-30 to +70 |
IEC 60794-1-201 |
|
Storage temperature range (°C) |
-40 to +70 |
IEC 60794-1-201 |
|
Installation temperature range (°C) |
-10 to +50 |
IEC 60794-1-201 |
|
Water tightness (1 m / 24 hrs.) |
No leakage |
IEC 60794-1-205 |
|
Class of fire reaction |
Fca |
EN 50575, EN 13501-6 |
|
|
|
|
|
|
||
|
Fibre Type |
G.657.A1 200 µm, G.657.A2 200 µm |
|
Fibre colour |
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
|
Tube colour |
Blue, Orange, Green, Brown |
|
Central strength member |
FRP rod |
|
Peripheral strength member |
FRP rod |
|
Ripcord |
1x under outer jacket |
|
Outer jacket material |
UV resistant black HDPE |
|
Outer jacket thickness |
0.4 mm |
|
|
|
|
Number of Fibers |
Cable Code (Ordering Code) |
Delivery length (Other lengths on request) |
Packing |
|
12 |
OPK-O-MTFDM-48(4x1.2)LTTP-xx-BK |
2100 m ± 5% |
Plywood reel |
|
xx – fibre type (see Cable code datasheet) |
|||
