Cable with polyamide PA12 jacket for installation by air-blowing technique

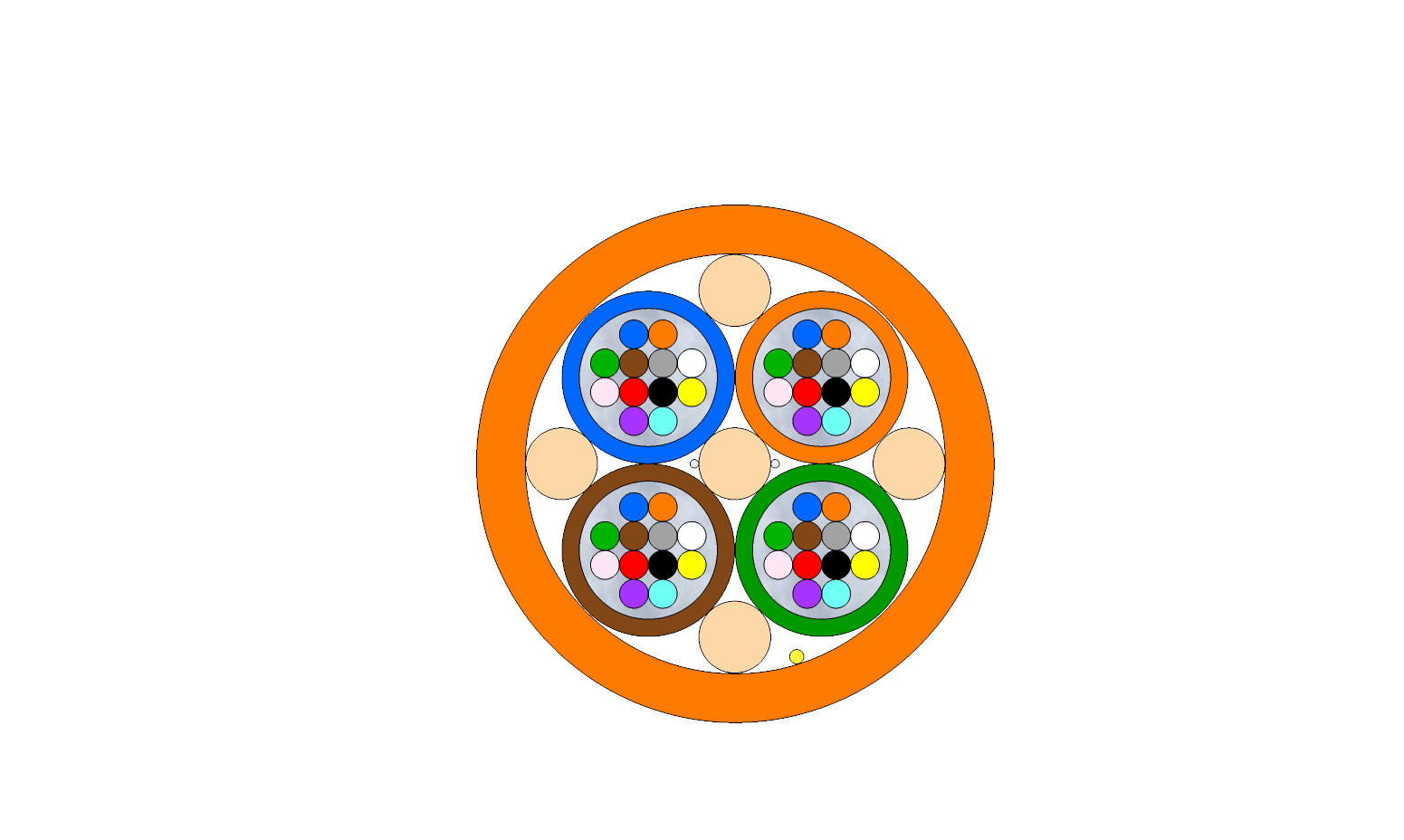

Outdoor Multitube Micro Cable PA 48F (RD)
| Cable outer diameter | 3.6 [mm] |
| Tube count | 4 |
| Filler count | 0 |
| Max. Loading (Short Term) | 400 [N] EN 60794-1-21-E1 |
| Max. Loading (Long Term) | 150 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 450 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 3 [Nm] EN 60794-1-21-E4 |
| Min. bend radius not load | 10 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 25 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -30 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -30 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -10 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 11 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Fiber count | 48 |
| Fiber Type | G.657.A1 200 µm |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue, Orange, Green, Brown |
| Tube filling compound | Low-viscosity filling compound |
| Central strength member | FRP rod |
| Peripheral strength member | FRP rod |
| Ripcord | 1x under outer jacket |
| Outer jacket | Polyamide PA12, Orange |
| Outer jacket thickness | 0.3 mm |
| Cable Code (Ordering Code) | OPK-O-MTFDM-48(4x1.2)LTTN-200A1-OG |
| Print legend | OPK –cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2100 m, 4200 m, ±5% on plywood reel or solid wooden non-returnable drum |
Cable with polyamide PA12 jacket for installation by air-blowing technique.
