Fibre optic cable for external installation by air-blowing technique

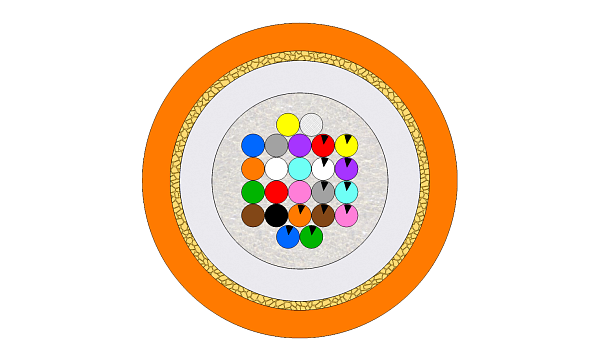

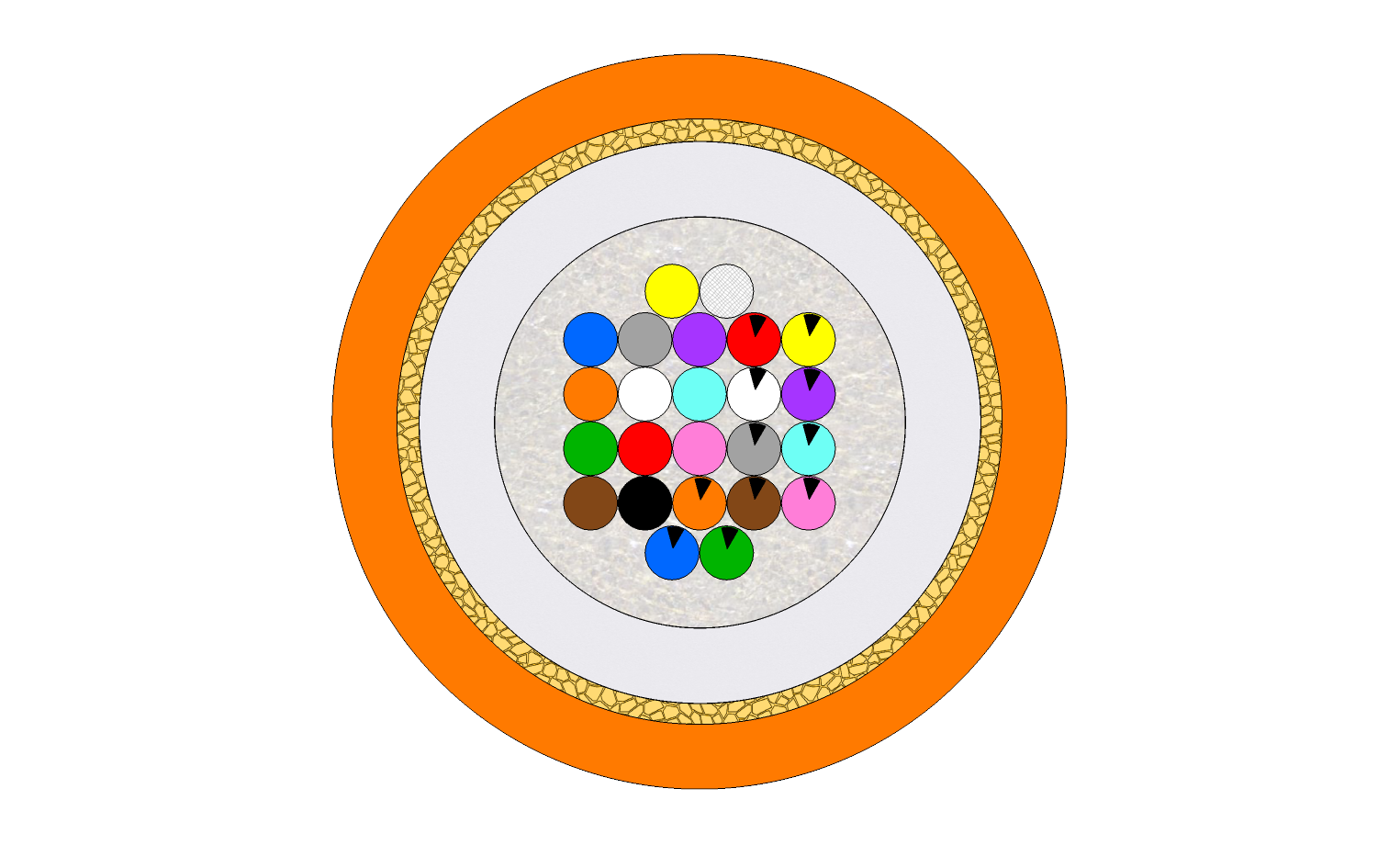

Unitube Microcable PA (IC)
Fiber optic cable for outdoor installation using the air-blowing technique—fast, clean deployment in microducts.
|
Fibre Type |
G.657.A1, G.657.A2 |
|
Fibre colour 1-12 |
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
|
Fibre colour 13-24 |
BlueBS, OrangeBS, GreenBS,BrownBS, GreyBS, WhiteBS ,RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS |
|
Tube colour |
Natural / White |
|
Tube diameter |
2.5 mm |
|
Peripheral strength members |
Water-swellable aramid yarns |
|
Jacket material |
Orange UV resistant Polyamide |
|
Nominal jacket thickness |
0.4 mm |
|
BS Black strip |
|
|
Number of Fibres |
24 |
|
|
Number of fibres in tube |
24 |
|
|
Nominal outer diameter (mm) |
3.4 |
|
|
Calc. cable weight (kg/km) |
10 |
|
|
Short-term tensile strength (N) |
140 |
IEC 60794-1-101 |
|
Long-term tensile strength (N) |
20 |
IEC 60794-1-101 |
|
Crush resistance (N/100 mm) |
500 |
IEC 60794-1-103 |
|
Max. impact loading (Nm) |
3 |
IEC 60794-1-104 |
|
Min. bend radius not load (OD) |
15 |
IEC 60794-1-111 |
|
Min. bend radius load (OD) |
20 |
IEC 60794-1-111 |
|
Operating temperature range (°C) |
-25 to +60 |
IEC 60794-1-201 |
|
Storage temperature range (°C) |
-40 to +60 |
IEC 60794-1-201 |
|
Installation temperature range (°C) |
-5 to +50 |
IEC 60794-1-201 |
|
Class of fire reaction |
Fca |
EN 50575, EN 13501-6 |
|
Number of Fibers |
Cable Code (Ordering Code) |
Delivery length |
Packing |
|
24 |
OPK-O-CTFB-24(1x2.5)LTAN-xx-OG |
4200 m ± 5% |
Plywood reel |
|
xx – fibre type (see Cable code datasheet) |
|||
0081_Outdoor Unitube Microcable PA 24F (IC)
