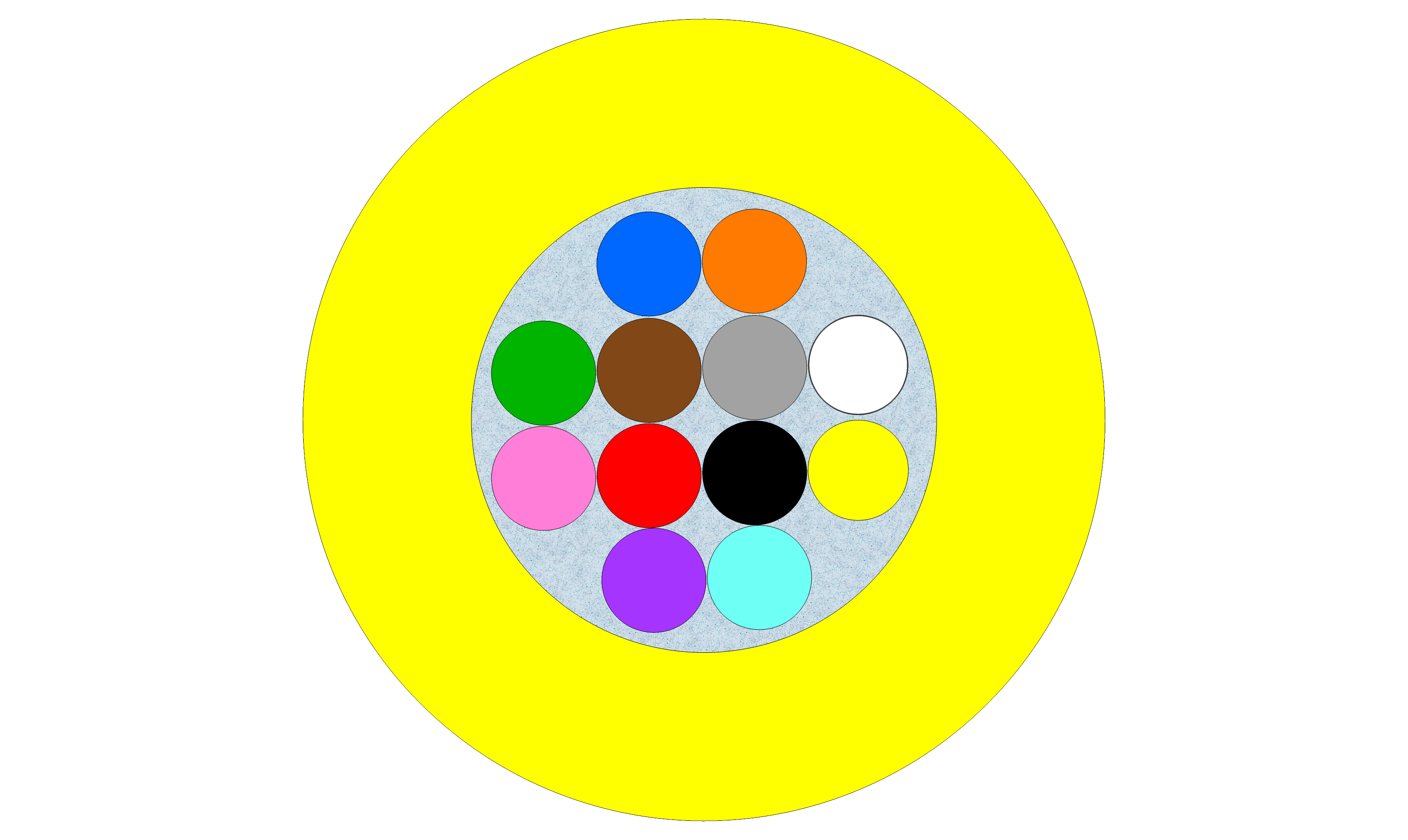

Air Blown Unit 2 – 24 Fibres

Fibre Type	G.657.A1,G.657.A2,OM1, OM2, OM3, OM4
Fibre colour	EIA/TIA-598A
Filling compound	Low-viscosity filling compound
Outer jacket	Low friction plastic
Cable colour	Yellow*

Number of fibres	2	4	6	8	12	24²⁾
Nominal outer diameter (mm)	2.0 ± 0.1	2.0 ± 0.1	2.3 ± 0.1	2.3 ± 0.1	2.6 ± 0.1	2.6 ± 0.1
Calc. cable weight (kg/km)	3.4	3.5	4.5	4.6	6.0	6.3
Short-term tensile strength (N)	40	40	40	40	40	40	IEC 60794-1-101
Crush resistance (N/100 mm)	50	50	50	50	50	50	IEC 60794-1-103
Min. bend radius (mm)	35	35	35	35	35	45	IEC 60794-1-111
Operating temperature range (°C)	-20 to +60	IEC 60794-1-201
Storage temperature range (°C)	-20 to +70	IEC 60794-1-201
Installation temperature range (°C)	-5 to +50¹⁾	IEC 60794-1-201
Water tightness (1 m / 24 hrs.)	No leakage	IEC 60794-1-205
Class of fire reaction	Fca	EN 50575, EN 13501-6
