Cable for external installation by air-blowing technique

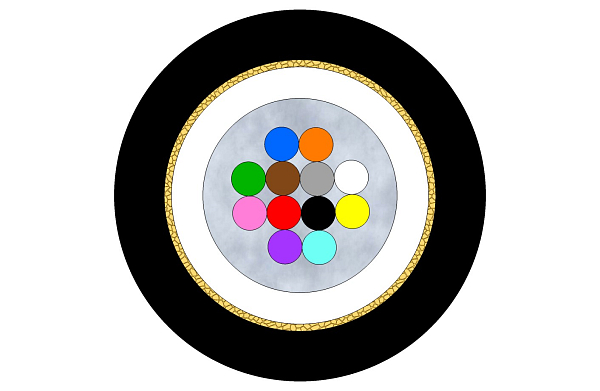

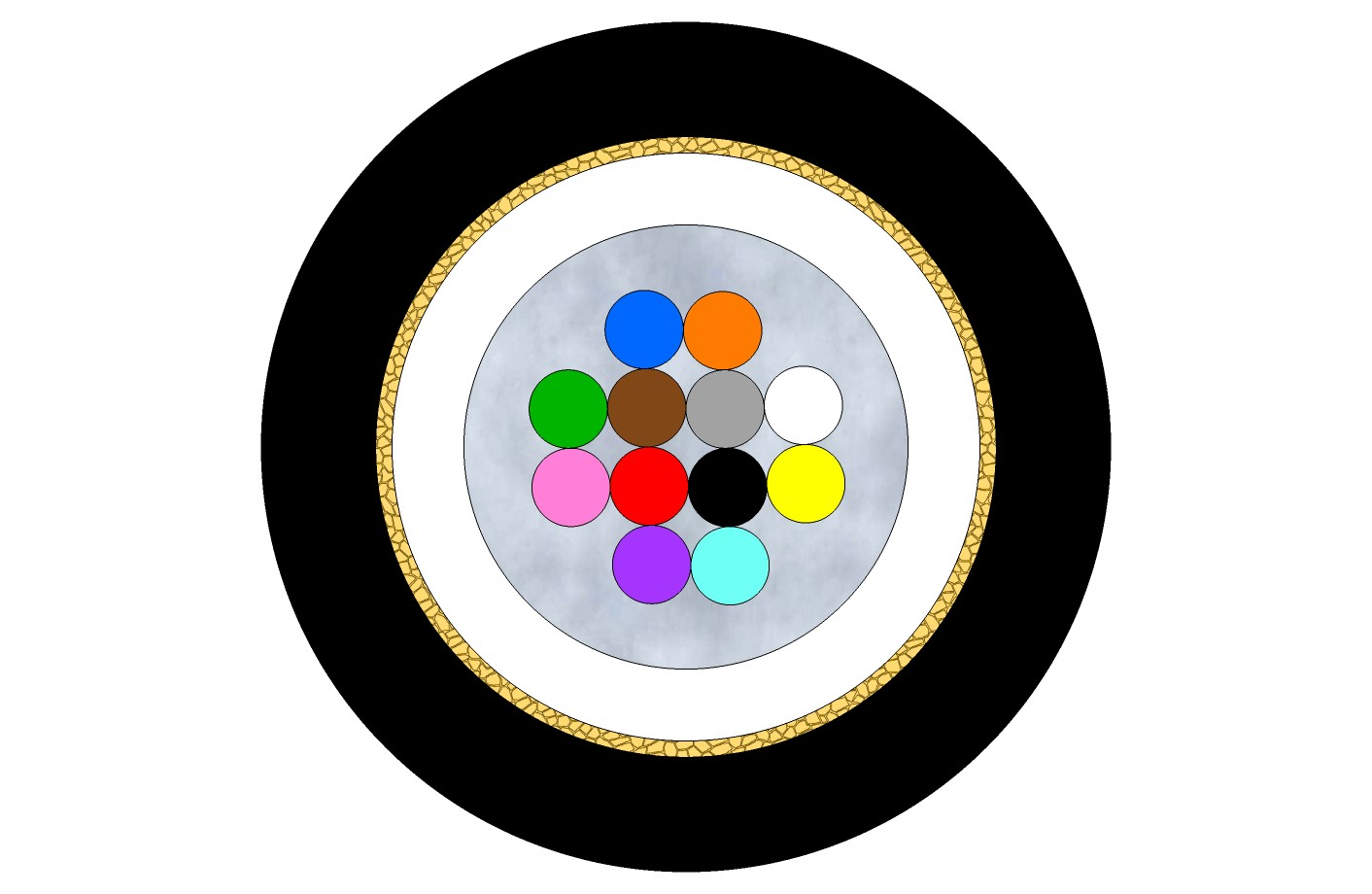

Outdoor Unitube Microcable 2 –12F (BS)
Cable for outdoor installation using the air-blowing technique—fast, clean deployment in ducts.
| Fibre count | Up to 12 |
| Fibre Type | G.657.A1, G.657.A2 |
| Fibre colour 1-12 | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel Filled PBT buffer tube |
| Tube colour | Natural / White |
| Filling compound | Low viscosity filling gel |
| Peripheral strength members | Water swellable Aramid yarn |
| Outer jacket | UV resistant black PE |
| Outer jacket thicknessthickness | 0.35 mm |
| Nominal cable diameterdiameter | 2.6 mm |
| Cable Weight (calc.) | 5.6 –5.9 kg/km |
| Max. Tensile Loading (Short Term) | 200 N |
| Max. Tensile Loading (Long Term) | 65 N |
| Max. compressive loading | 1500 N/100 mm |
| Max. Impact loading | 1 Nm |
| Min. bend radius not load | 15 x OD |
| Min. bend radius load | 20 X OD |
| Operating temperature range | -20°C to +60°C |
| Storage temperature range | -20°C to +60°C |
| Installation temperature range | -15°C to +50°C |
| Class of fire reaction | Fca |
| Print legend | Manufacturer - Cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2100 m ±5% on plywood reel |
0311_Outdoor Unitube Microcable 2-12F (BS)
