For indoor general purpose, e.g. patch cords, office LAN connections or point-to-point interconnection. Ideal for Uniboot Duplex Patch Cable.

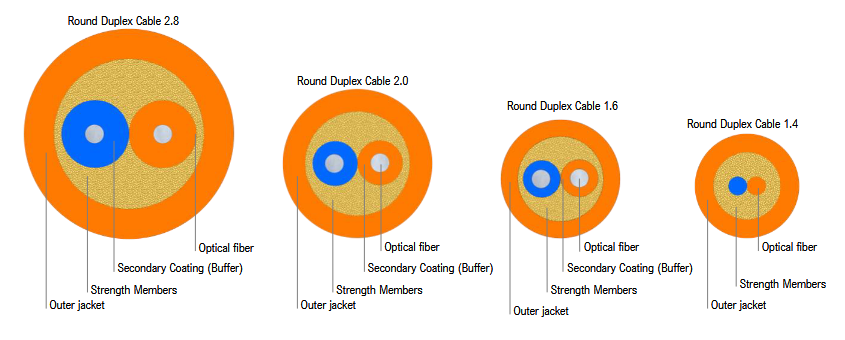

Round Duplex Cable
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.657.B3, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour | Natural , EIA/TIA-598A |
| Buffer material | Halogen-free flame-retardant thermoplastic compound |
| Buffer colour | Blue, Orange |
| Peripheral strength members | Aramid yarns |
| Outer jacket material | Halogen-free flame-retardant thermoplastic compound |
| Current number | 1 | 2 | 3 | 4 | |
| Number of fibres | 2 | 2 | 2 | 2 | |
| Buffer diameter (mm) | - | 0.5 | 0.6 | 0.9 | |
| Cable outer diameter (mm) | 1.4 | 1.6 | 2.0 | 2.8 | |
| Calc. cable weight (kg/km) | 1.8 | 2.4 | 3.7 | 7.0 | |
| Short-term tensile strength (N) | 50 | 40 | 250 | 400 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 100 | 80 | 300 | 800 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 1 | IEC 60794-1-104 | |||
| Min. bend radius not load (OD) | 5 | IEC 60794-1-111 | |||
| Min. bend radius load (OD) | 10 | IEC 60794-1-111 | |||
| Operating temperature range (°C) | Tight buffer , fiber | -25 to +70 | IEC 60794-1-201 | ||
| Free buffer | - 5 to +50 | IEC 60794-1-201 | |||
| Storage temperature range (°C) | -25 to +70 | IEC 60794-1-201 | |||
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
