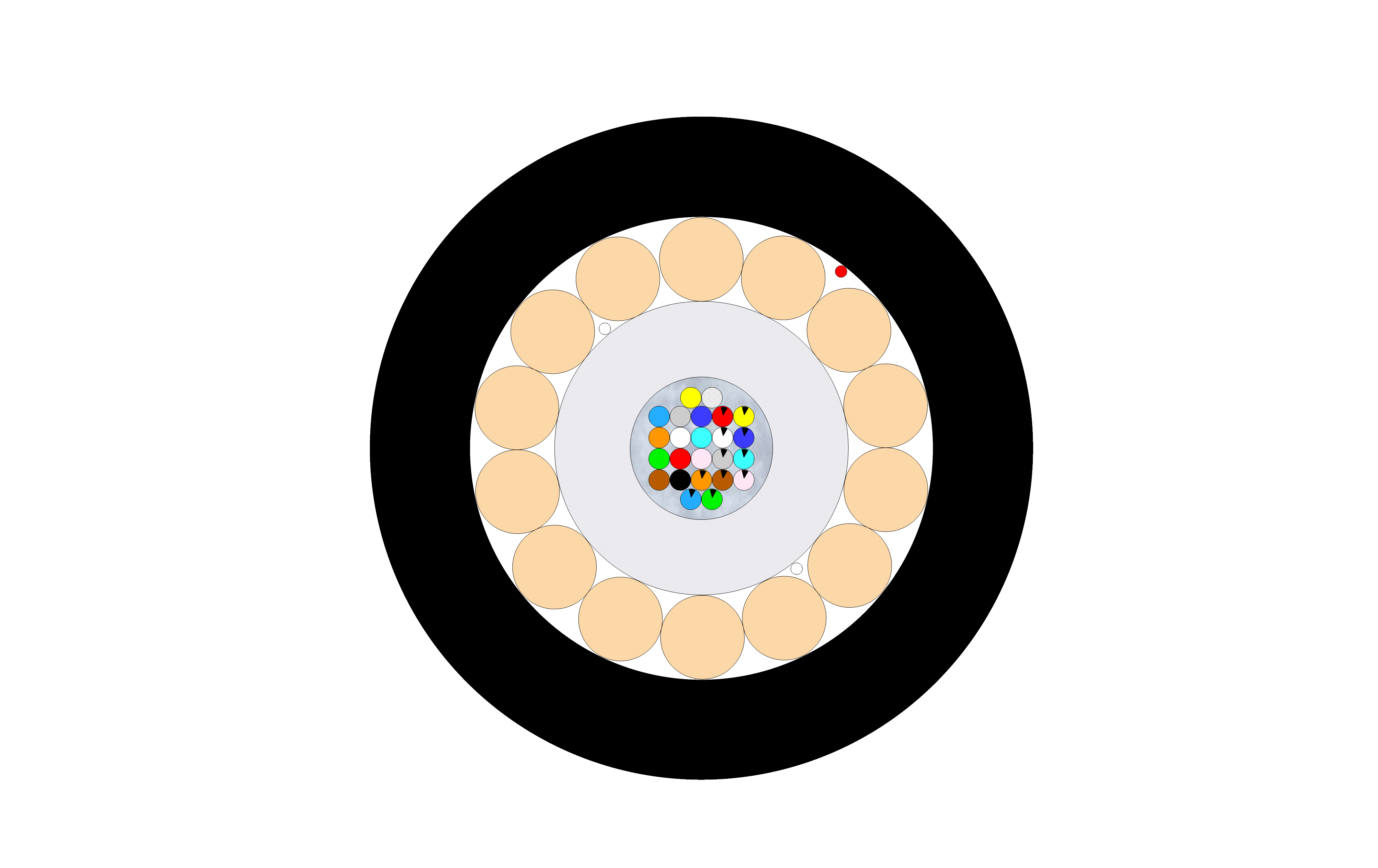

Outdoor FRP armoured Unitube Cable

ISO Certified

EN ISO 9001:2015
EN ISO 14001:2015
ČOS 051672 (AQAP 2110) Certified

Calibration Laboratory

Accredited Calibration Laboratory No. 2315
In Czech Republic & Malaysia

Testing Laboratory

Accredited Testing Laboratory No. 1755

NATO Supplier

OPTOKON NATO
Supplier Code: 1583G

National Security Certified

National Security Authority Certified: CONFIDENTAL

Member Of Cenelec

Member of CENELEC European Comittee for Electrotechnical Standardization

AOBP

Member of Defence and Security Industry Association

Chamber of Commerce

Member of the Czech Chamber of Commerce

STI Industry Partner

OPTOKON is a CISCO Solution Technology Integrator

Fibre count	up to 24
Fibre Type	G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM2+, OM3, OM4
Fibre colour	1-12 Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
13-24 BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS	(BS Black strip)
Tube	Gel-Filled PBT buffer tube
Tube colour	Natural / White
Tube diameter	3.5 mm
Filling compound	Low-viscosity filling gel
Strength member (Armouring)	FRP rods
Ripcord	1x under outer jacket
Outer jacket	UV resistant black HDPE
Jacket thickness	1.2 mm

Cable outer diameter	7.9 [mm]
Max. Loading (Short Term)	2500 [N] EN 60794-1-21-E1
Max. Loading (Long Term)	700 [N] EN 60794-1-21-E1
Max. compressive loading	3000 [N] EN 60794-1-21-E3
Max. Impact loading	20 [Nm] EN 60794-1-21-E4
Min. bend radius	100 [mm] EN 60794-1-21-E11A
Operating temperature range	-40 to +70 [°C] EN 60794-1-22-F1
Storage temperature range	-40 to +70 [°C] EN 60794-1-22-F1
Installation temperature range	-5 to +50 [°C] EN 60794-1-22-F1
Freezing resistance	Pass EN 60794-1-22-F15
Water tightness	No water detected on free end EN 60794-1-22-F5
Cable Weight (calc.)	61 [kg/km]
Class of fire reaction	Fca
