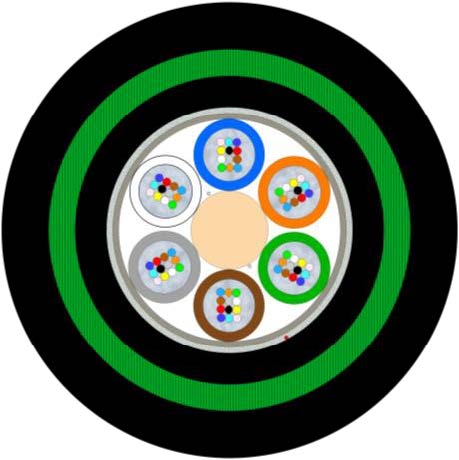

Outdoor CST Armoured Multitube Cable-Double Jacket 12-288F(HC)

Fibre optic cable with full protection against rodents for direct burial installation.

Fibre Type	G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4
Fibre colour	EIA/TIA-598A
Gel filled loose tube	Gel-filled PBT buffer tube
Tube colour	EIA/TIA-598A
Central strength member	FRP rod (PE coated if necessary)
Core wrapping	Water-swellable tape
Peripheral strength members	Water-swellable glass yarns
Inner jacket material	UV resistant black PE
Ripcord	1x under inner jacket
Armouring	Corrugated steel tape, longitudinally under jacket
Outer jacket material	UV resistant black HDPE

Number of fibres	12	24	48	60	72	96	144	288
Number of fibres in tube	12	12	12	12	12	12	12	12
Tube count (layers)	1	2	4	5	6	8	12	24(9+15)
Filler count	4	3	1	0	0	0	0	0
Nominal outer diameter (mm)	13.9	13.9	13.9	13.9	14.6	16.8	19.0	21.6
Inner jacket thickness (mm)	1.0
Outer jacket thickness (mm)	1.5
Calc. cable weight (kg/km)	164	166	170	172	192	234	310	385
Short-term tensile strength (N)	2400	2400	2400	2400	3600	4800	5500	4700	IEC 60794-1-101
Long-term tensile strength (N)	500	500	500	500	1000	1900	2500	1800	IEC 60794-1-101
Short-term crush resistance (N/100 mm)	5000								IEC 60794-1-103
Long-term crush resistance (N/100 mm)	1500								IEC 60794-1-103
Max. impact loading (Nm)	30								IEC 60794-1-104
Min. bend radius not load (OD)	15								IEC 60794-1-111
Min. bend radius load (OD)	20								IEC 60794-1-111
Operating temperature range (°C)	-40 to +70								IEC 60794-1-201
Storage temperature range (°C)	-40 to +70								IEC 60794-1-201
Installation temperature range (°C)	-15 to +50								IEC 60794-1-201
Water tightness (1 m / 24 hrs.)	No leakage (without armouring)								IEC 60794-1-205
Class of fire reaction	Fca								EN 50575, EN 13501-6
