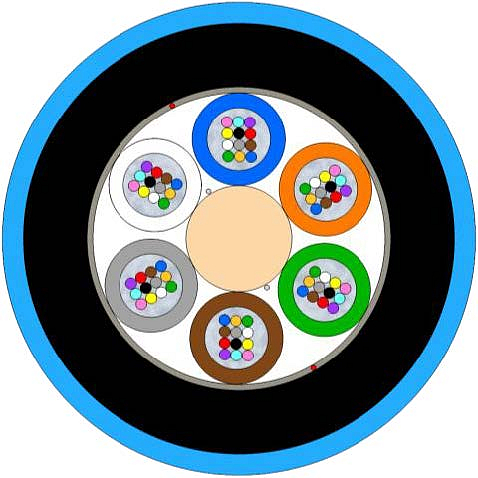

Outdoor Non-Metallic Armoured Multitube Cable 12-144F (RA)

Outdoor Non-Metallic Armoured Multitube Cable 12-144F (RA)

Non-metallic cable suited for external installation into duct or direct burial in the ground

  • Features
  • Specifications
  • Application
  • Documents
Fibre Type G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM3, OM4
Fibre colour EIA/TIA-598A
Tube colour EIA/TIA-598A
Tube Gel-Filled PBT buffer tube
Tube filling compound Low-viscosity filling gel
Central strength member FRP rod (coated if necessary)
Core wrapping Water-swellable tape
Ripcord 2x under outer jacket
Inner jacket material Black UV resistant PE
Outer jacket material Blue UV resistant Polyamide



Number of fibres 12 24 48 60 72 96 144
Number of fibres in tube 12 12 12 12 12 12 12
Tube count (layers) 1 2 4 5 6 8 12
Filler count 5 4 2 1 0 0 0
Nominal outer diameter (mm) 11.2 11.2 11.2 11.2 11.2 12.6 15.6
Inner jacket thickness (mm)       1.5
Outer jacket thickness (mm)       0.5
Calc. cable weight (kg/km) 94 95 96 97 98 123 185
Short-term tensile strength (N) 2250 2250 2250 2250 2250 2600 4100 IEC 60794-1-101
Long-term tensile strength (N) 700 700 700 700 700 800 1300 IEC 60794-1-101
Short-term crush resistance (N/100 mm)       3000       IEC 60794-1-103
Long-term crush resistance (N/100 mm)       900       IEC 60794-1-103
Max. impact loading (Nm)       20       IEC 60794-1-104
Min. bend radius not load (OD)       20       IEC 60794-1-111
Min. bend radius load (OD)       30       IEC 60794-1-111
Operating temperature range (°C)       -40 to +70       IEC 60794-1-201
Storage temperature range (°C)       -40 to +70       IEC 60794-1-201
Installation temperature range (°C)       -15 to +50       IEC 60794-1-201
Water tightness (1 m / 24 hrs.)       No leakage       IEC 60794-1-205
Class of fire reaction       Fca       EN 50575, EN 13501-6
