The FC connectors are designed and manufactured according to JIS, IEC, EIA/TIA and ANSI specifications for intermateability and optical performance. The FC connectors are available in both MM and SM versions with PC and APC polishing method.

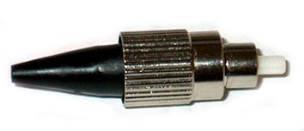

FC Connector
- Pull proof
- Meets FC connector standard
- FC/APC available both standards:
- Type R - Methode, Seikoh Giken, JDSU
- Type N - Seiko Instruments
- Pre-radiused ceramic ferrules configured for Ultra, PC and APC polishing
- Pre-assembled option simplifies field termination
- Ferrule assembly has high resolution tuning feature
- Dust cover
| Insertion loss (IL) | typ. 0.15 dB |
| Return loss (RL) | > 60 dB for jumper length up to 5 m |
| Strain relief | 200 N |
| Operating temperature | -40 °C to +80 °C, conditioned by type of cable |
| Durability | min 1000 cycles |
| Assembly procedure | glue and polish |
| Connection | physical contact |
| Lock mechanism | coupling nut |
| Standards | JIS 5970, EIA/TIA FOCIS, CENELEC |
| Material | |
| Coupling Nut | stainless steel |
| Rear Body | zinc alloy, nickel plated |
| Ferrule Material | full ceramic zirconia |
| Crimp Sleeve | brass, tin plated |
| Boot and Dust Cover | thermoplastic rubber (flame retardant) |
- Telecom
- LAN, WAN
- CATV, sensor systems, measuring technique
- Utilities, railways
CON_06-02_EN-FC_CONNECTOR
