Cable for applications where there is a requirement for data communication by fiber optic and at the same time is needed power supply. Suitable for FTTA applications and CCTV systems.

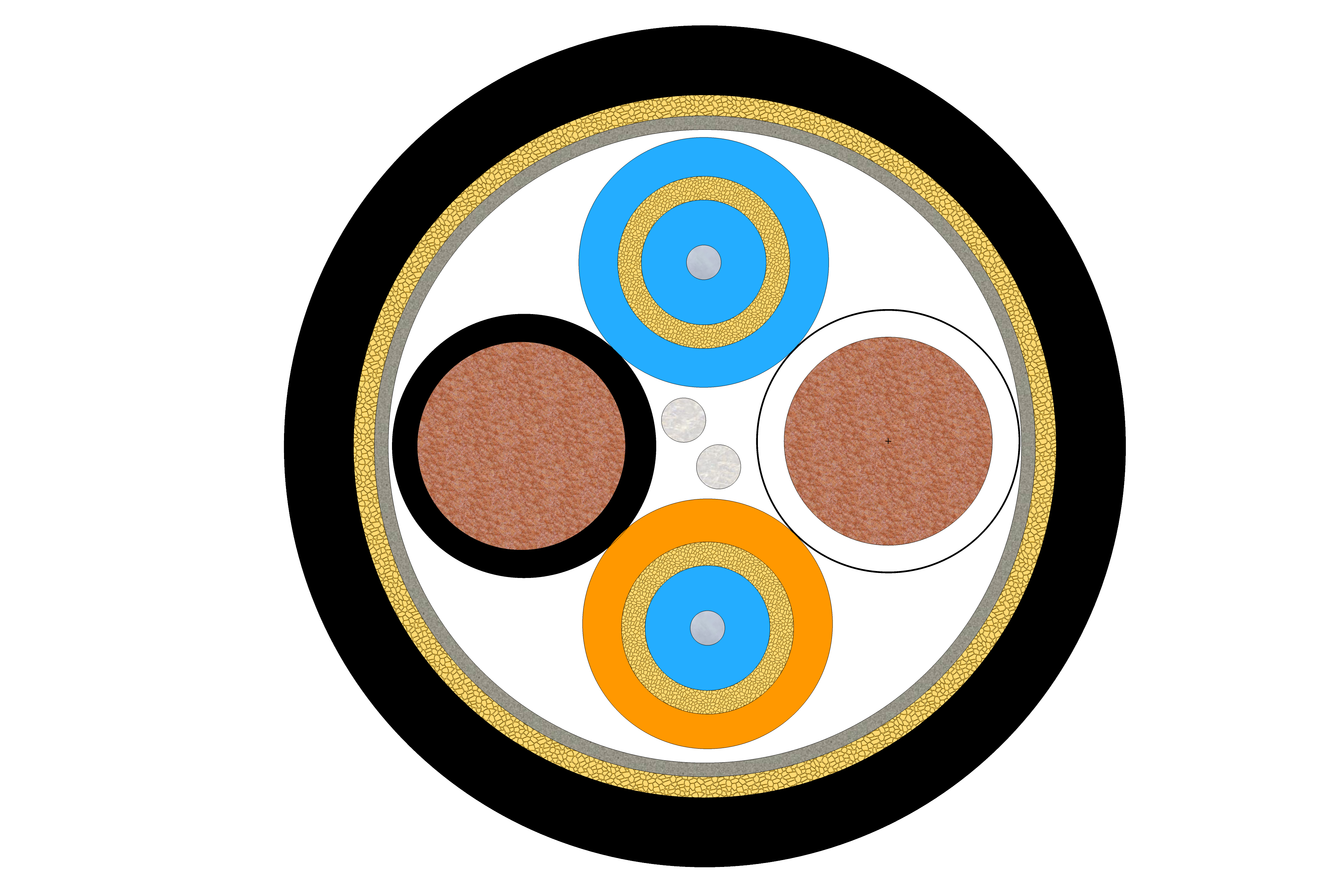

Hybrid Cable 2F + 2x CuSn
| Fibre Type | G.652.D, G.657.A1, G.657.A2, OM1, OM2, OM3, OM4 |
| Fibre colour | Natural |
| Buffer colour | EIA/TIA-598A |
| Buffer material | UV curable acrylate |
| Simplex colour | EIA/TIA-598A |
| Simplex jacket material | Halogen-free flame-retardant thermoplastic compound |
| Wire material | Stranded Tinned Copper , AWG 16 (19x0.3 mm) |
| Wire Insulation material | FEP ( Fluorinated Ethylene Propylene) |
| Wire Insulation colour | EIA/TIA-598A |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable Aramid yarns |
| Outer jacket material | UV resistant, Flame-retardant (V-0, UL94) Thermoplastic Polyurethane* |
| Number of fibres | 2 | |
| Wire count | 2 | |
| Buffer diameter(mm) | 0.9 | |
| Simplex diameter (mm) | 1.8 | |
| Wire Insulation diameter (mm) | 1.9 | |
| Nominal outer diameter (mm) | 7.3 | |
| Calc. cable weight (kg/km) | 66 | |
| Short-term tensile strength (N) | 500 | IEC 60794-1-101 |
| Long-term tensile strength (N) | 80 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 1500 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 10 | IEC 60794-1-104 |
| Min. bend radius not load (OD) | 10 | IEC 60794-1-111 |
| Min. bend radius load (OD) | 15 | IEC 60794-1-111 |
| Wire resistance ( Ohm/km at 20°C) | 14.6 | |
| Wire Insulation Spark Test 3000V/0.15 sec | PASS | |
| Test voltage 2000V underwater 1 hour at the room temperature | PASS | |
| Operating temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Installation temperature range (°C) | -15 to +50 | IEC 60794-1-201 |
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 |
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
