Hybrid copper/fiber cable for applications where there is a requirement for data communication by fiber optic and at the same time is needed power supply. Suitable for FTTA applications, CCTV systems.

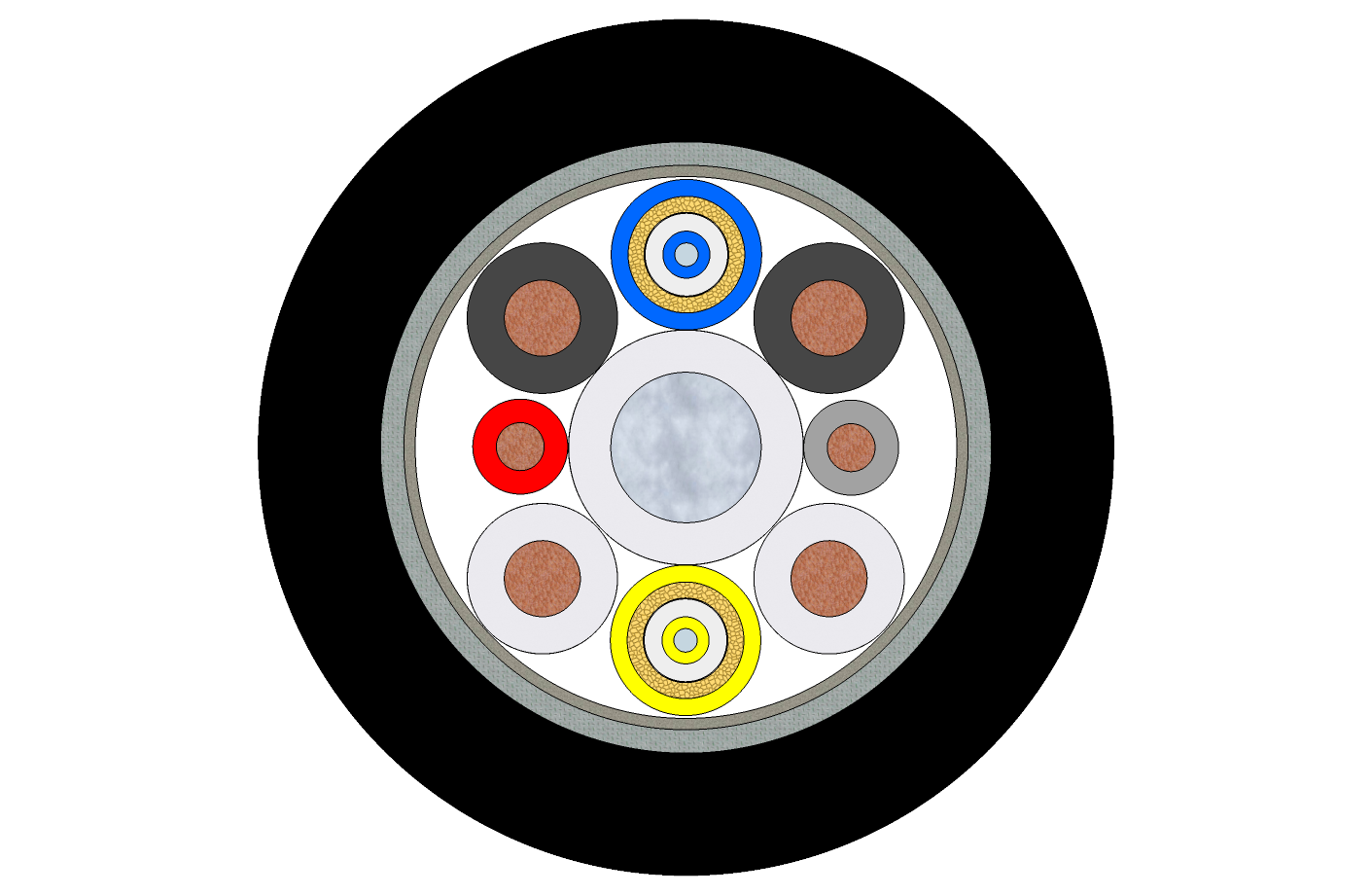

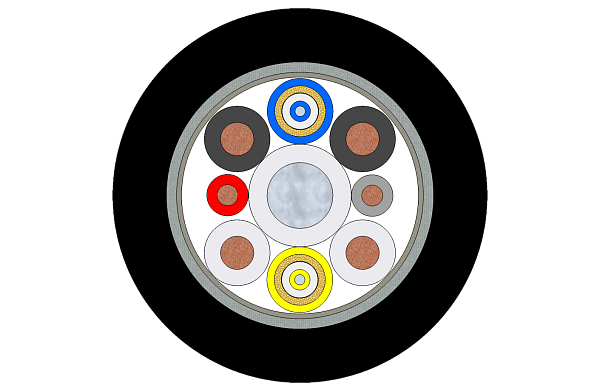

SMPTE Hybrid Camera Cable
Hybrid copper/fiber cable that delivers optical data and power supply in one run. Ideal for FTTA applications and CCTV systems, simplifying planning and speeding installation.
|
Fibre Type |
G.657.A1, G.657.A2 |
|
Fibre colour |
Blue, Yellow |
|
Buffer diameter |
0.9 mm |
|
Buffer material |
PA12 (Nylon) |
|
Buffers colour |
Natural-transparent |
|
Simplex colour |
Blue, Yellow |
|
Simplex jacket |
Halogen-free flame-retardant thermoplastic compound |
|
Simplex diameter |
1.6 mm |
|
Power conductor Colour |
Black (2x), White (2x) |
|
Power conductor type |
Stranded Tinned Copper, AWG 20 (19x0.2 mm) |
|
Insulation material |
HDPE |
|
Power conductor diameter |
1.6 mm |
|
Signal conductor Colour |
Grey, Red |
|
Signal conductor type |
Stranded Tinned Copper, AWG 24 (7x0.2 mm) |
|
Insulation material |
HDPE |
|
Signal conductor diameter |
1.1 mm |
|
Central strength member |
Galvanized steel wires, coated FR-LSHF |
|
Core wrapping |
non-woven fabric tape |
|
Shield |
Tinned copper wire braiding, covering density min. 95% |
|
Outer jacket |
UV stable Flame-retardant TPU Outer Jacket |
|
Number of fibres |
2 |
|
|
Number of power conductors |
4 |
|
|
Number of signal conductors |
1 |
|
|
Nominal outer diameter (mm) |
9.1 |
|
|
Calc. cable weight (kg/km) |
124 |
|
|
Tensile strength (N) |
800 |
IEC 60794-1-101 |
|
Crush resistance (N/100 mm) |
2000 |
IEC 60794-1-103 |
|
Max. impact loading (Nm) |
6 |
IEC 60794-1-104 |
|
Min. bend radius @ 20°C (mm) |
65 |
IEC 60794-1-111 |
|
Operating temperature range (°C) |
-40 to +70 |
IEC 60794-1-201 |
|
Power conductor |
|
|
|
Resistance |
≤35.3 |
Ω/km @ 20°C |
|
Insulation resistance |
≥10 000 |
MΩ•km @ 20°C |
|
Test Voltage |
1750 |
V / ACeff |
|
Operating Voltage |
600 |
V / ACeff |
|
Signal conductor |
|
|
|
Resistance |
≤97.5 |
Ω/km @ 20°C |
|
Insulation resistance |
≥10 000 |
MΩ•km @ 20°C |
|
Test Voltage |
1750 |
V / ACeff |
|
Operating Voltage |
300 |
V / ACeff |
|
Class of fire reaction |
Fca |
EN 50575, EN 13501-6 |
0085_SMPTE Camera Cable
