Highly durable flexible cable for application where there is a requirement for data communication by fiber optic and at the same tame is needed power supply. Suitable for FTTA applications, CCTV systems or for connections of movable equipment

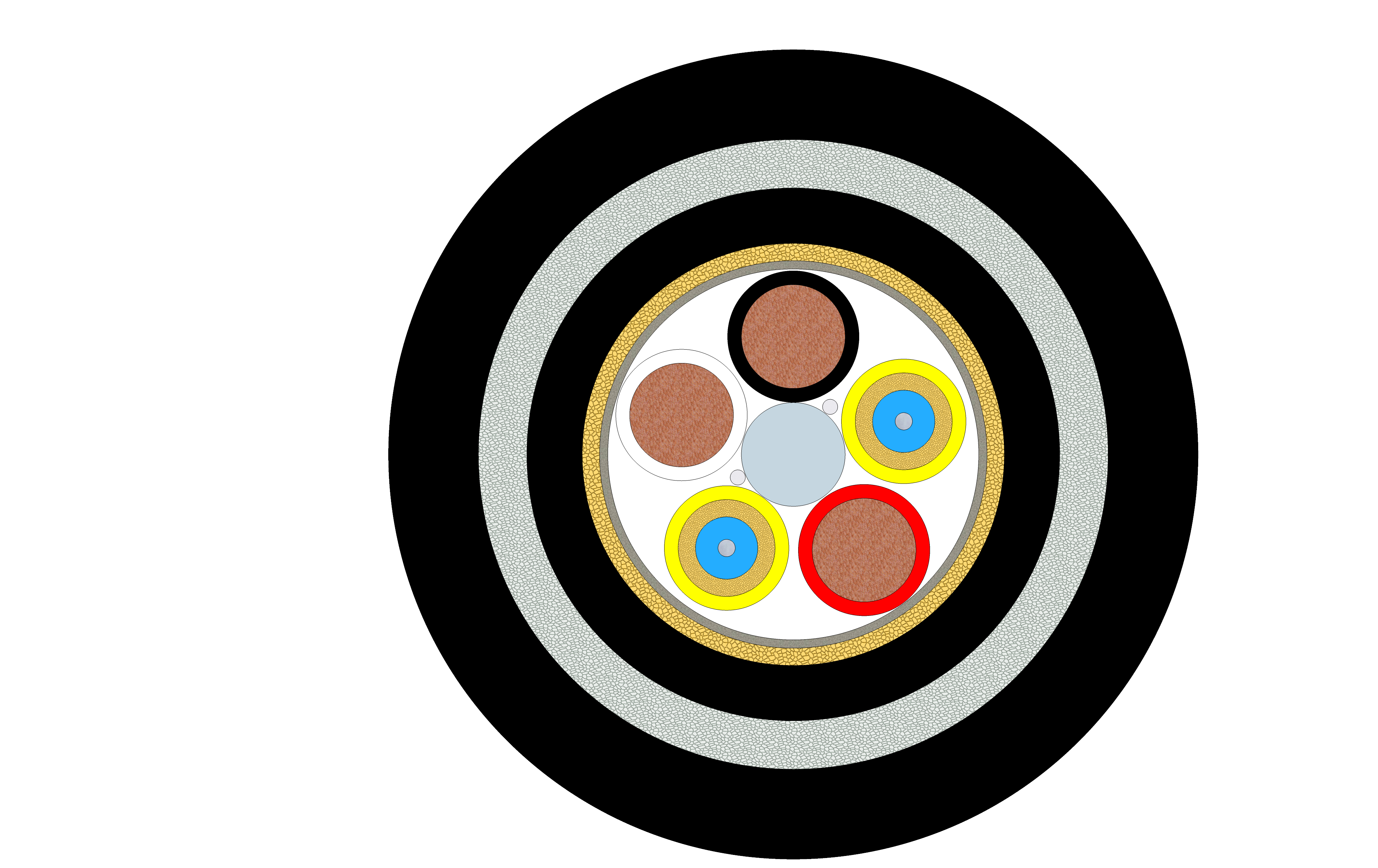

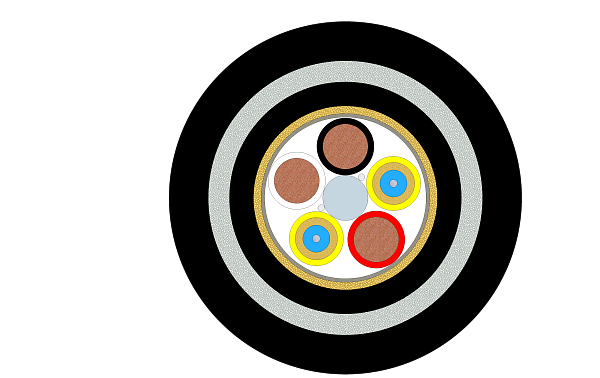

Highly Durable Hybrid Cable
| Fibre Type | G.657.A1, G.657.A2 |
|---|---|
| Fibre colour | Natural |
| Buffer colour | EIA/TIA-598A |
| Buffer material | UV curable acrylate |
| Simplex colour | EIA/TIA-598A |
| Simplex jacket material | Halogen-free flame-retardant thermoplastic compound |
| Conductor material | Stranded Tinned Copper , AWG 16 (19x0.3 mm) |
| Wire Insulation material | FEP |
| Wire Insulation colour | EIA/TIA-598A |
| Core wrapping | Water-swellable tape |
| Strength members | Water-swellable Aramid yarns |
| Inner jacket material | UV resistant, Flame-retardant (V-0, UL94) Thermoplastic Polyurethane |
| Peripheral strength members | Water-swellable glass yarns |
| Outer jacket material | UV resistant, Flame-retardant (V-0, UL94) Thermoplastic Polyurethane |
| Number of fibres | 2 | |
|---|---|---|
| Buffer diameter (mm) | 0.9 | |
| Simplex diameter (mm) | 1.8 | |
| Conductor count | 3 | |
| Wire Insulation diameter (mm) | 1.9 | |
| Nominal outer diameter (mm) | 11.7 | |
| Inner jacket thickness (mm) | 0.8 | |
| Outer jacket thickness (mm) | 1.3 | |
| Calc. cable weight (kg/km) | 152 | |
| Short-term tensile strength (N) | 8000 | IEC 60794-1-101 |
| Long-term tensile strength (N) | 3500 | IEC 60794-1-101 |
| Abrasion resistance 10 000 cycles | 5 N | IEC 60794-1-102 |
| Short-term crush resistance (N/100 mm) | 5500 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 27 | IEC 60794-1-104 |
| Kink Testing (mm) | 150 | IEC 60794-1-110 |
| Min. bend radius not load (OD) | 75 | IEC 60794-1-111 |
| Min. bend radius load (OD) | 150 | IEC 60794-1-111 |
| Torsion resistance (standard method E7) | ± 360° | IEC 60794-1-107 |
| Wire resistance | 14.6 Ohm/km at 20°C | |
| Wire Insulation Spark Test 3000 V / 0.15 sec. | Pass | |
| Test voltage underwater 2000 V / 1 hour (room temperature) | PASS | |
| Operating temperature range (°C) (static) | -40 to +70 | IEC 60794-1-201 |
| Operating temperature range (°C) (dynamic) | -10 to +70 | IEC 60794-1-201 |
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Installation temperature range (°C) | -10 to +60 | IEC 60794-1-201 |
| Freezing Test (standard method F15) | Pass | IEC 60794-1-215 |
| Aging Test (standard method F9) | Pass | IEC-60794-1-209 |
| Water tightness (1 m / 24 hrs.) | Pass | IEC 60794-1-205 |
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
| Static coefficient of friction (stainless steel – dry) | 0.73 |
