We offer an extensive range of pre-terminated cable assemblies that are 100% tested to ensure
conformance with your specifications. These assemblies are used for measuring and manufacturing of
fiber optic components and optical network testing.
The Master patchcord is equipped with a Master connector according to the specifications below.
The master connector is specified with its Serial Number on connector body, which ensures traceability
of transmission and geometrical parameters. The second connector is a standard type. For the hybrid
patchcord version different types of master and standard connector types are also available.

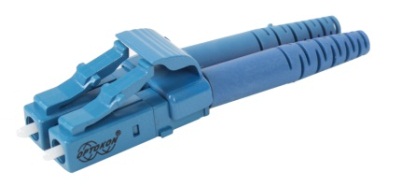

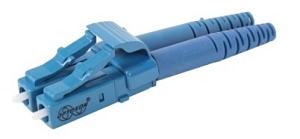

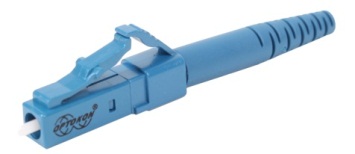

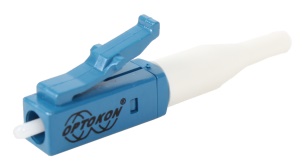

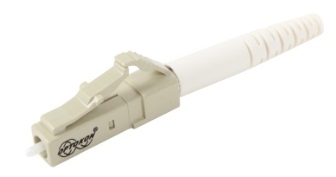

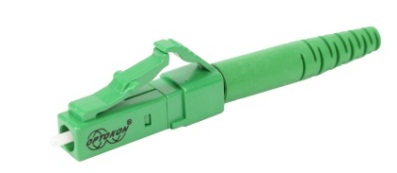

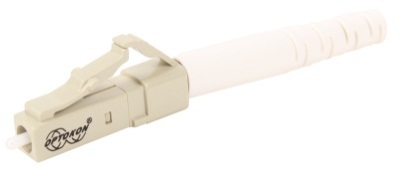

LC Connector
- ISO 9100 approved
- 100% Return loss test
- 100% Visual Inspection
- 100% Insertion loss test
- 100% Interferometric test
- Manufactured to meet IEC/EN
- Standards
- Batch tracebility
| Specifications: | Single mode | Multimode |
| Insertion loss (IL) | ≤ 0.1 dB (λ = 1310, 1550, 1650 nm) |
≤ 0.1 dB (λ = 850, 1300 nm) |
| Return loss (RL) | UPC ≥ 55 dB, APC ≥ 65 dB | PC ≥ 30 dB |
| Geometrical parameters: | ||
| Eccentricity of core for the center of ferrule | ≤ 0.3 / 0.5 5 µm | N/A |

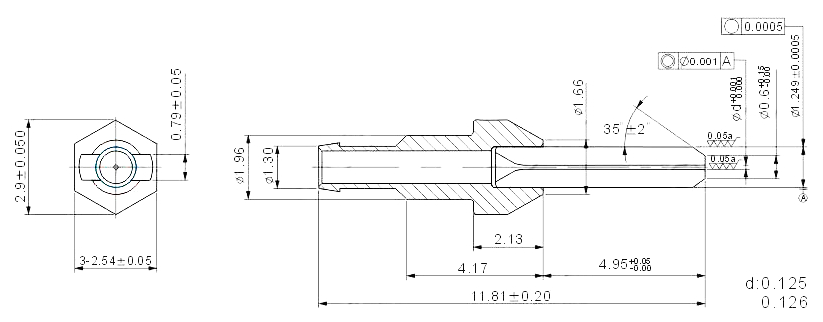

| Outer diameter of ferrule | Standard connectors: 2.499 µm SFF connectors: 1.249 µm |
|
| End curve offset | ≤25 µm | |
| Fiber height | -30 to +50 nm | |
| End curve radius | Standard connectors: PC polishing 10 – 18 mm APC polishing 5 – 12 mm SFF connectors: PC/APC 5 – 12 mm |
|
| APC angle | 8 ± 0.1° | N/A |
| Temperature stability (-40°C to +80°C) | <0.2 dB | <0.2 dB |
| Mating durability (500 cycles) | <0.2 dB | <0.2 dB |
| Cable retention 5 | 100 N | 100 N |
| Material: | ||
| Connector body | metal, plastic | metal, plastic |
| Ferrule material | full ceramic zirconia | full ceramic zirconia |
| Fiber | 9/125 | 50/125; 62.5/125 |
| Crimp sleeve | metal | metal |
| Boot | rubber | rubber |
- Telecom
- Data Centers
- Enterprise Networks
CON_09-02_EN-LC_Connector
