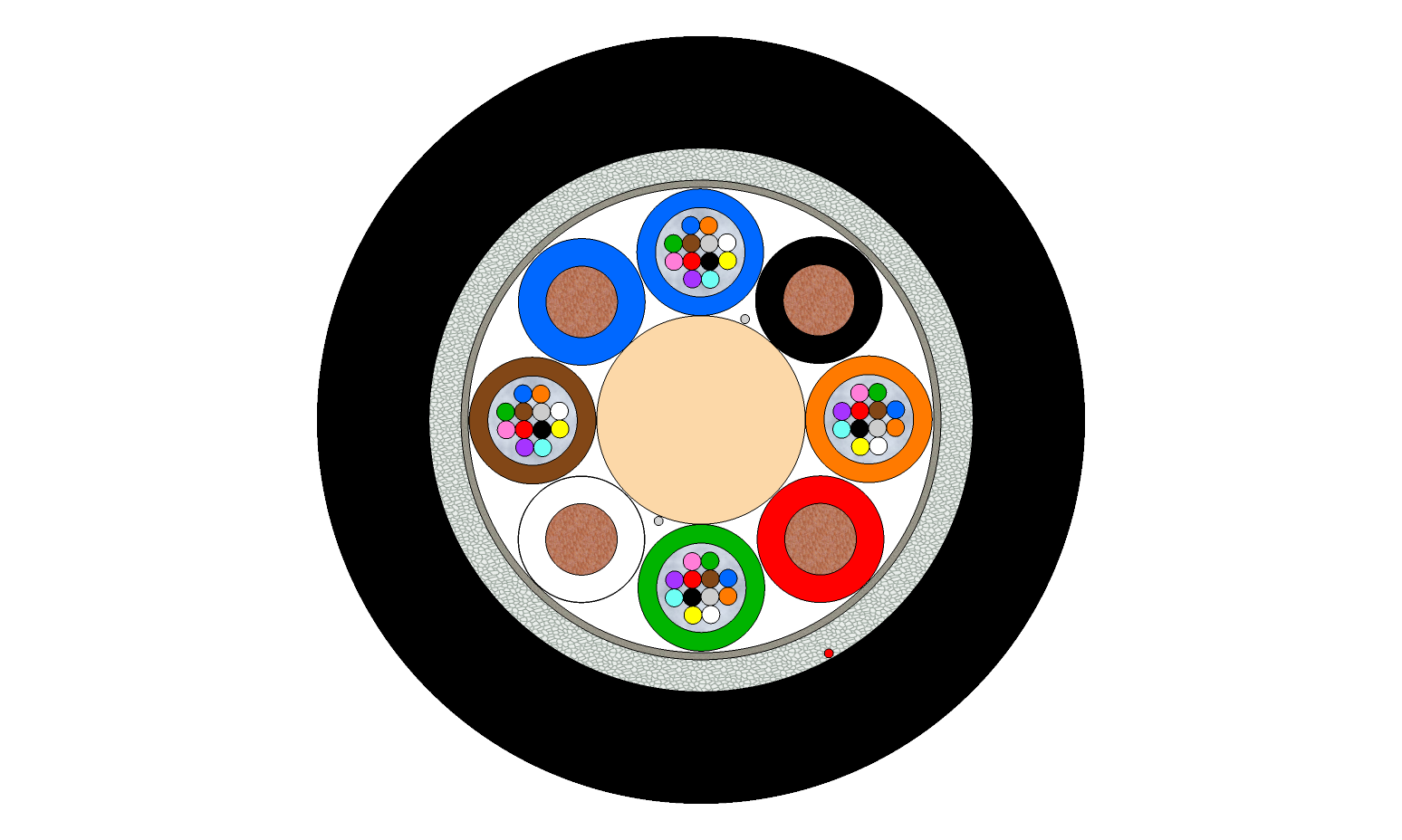

Hybrid Copper/Fiber Cable 2-48F + 0.75 mm2 (NC)

Hybrid copper/fiber cable allows to power devices (cameras, sensors, etc.) and at the same time data transmission via optical fibers in one cable.

Hybrid copper/fiber cable that powers devices and carries optical data in a single run—ideal for cameras, sensors, and similar endpoints.

Parameter	12F / 2C	12F / 4C	24F / 2C	24F / 4C	48F / 2C	48F / 4C	Standard
Number of fibres	12	12	24	24	48	48	—
Number of fibres in tube	12	12	12	12	12	12	—
Tube count	1	1	2	2	4	4	—
Copper conductor count	2	4	2	4	2	4	—
Filler count	2	0	2	0	0	0	—
Nominal outer diameter (mm)	8.7	8.7	8.7	9.0	9.0	10.3	—
Calculated cable weight (kg/km)	70	82	71	89	78	106	—
Short-term tensile strength (N)	2100	2100	2100	2400	2400	4000	IEC 60794-1-101
Long-term tensile strength (N)	1100	1100	1100	1300	1300	2500	IEC 60794-1-101
Crush resistance (N/100 mm)	2000	2000	2000	2000	2000	2000	IEC 60794-1-103
Max. impact loading (Nm)	10	10	10	10	10	10	IEC 60794-1-104
Min. bend radius, no load (OD)	15	15	15	15	15	15	IEC 60794-1-111
Min. bend radius, load (OD)	20	20	20	20	20	20	IEC 60794-1-111
Operating temperature range (°C)	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	IEC 60794-1-201
Storage temperature range (°C)	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	IEC 60794-1-201
Installation temperature range (°C)	−15 to +50	−15 to +50	−15 to +50	−15 to +50	−15 to +50	−15 to +50	IEC 60794-1-201
Water tightness (1 m / 24 h)	No leakage	No leakage	No leakage	No leakage	No leakage	No leakage	IEC 60794-1-205
Class of fire reaction	Fca	Fca	Fca	Fca	Fca	Fca	EN 50575, EN 13501-6
Testing voltage (kV)	2	2	2	2	2	2	—
Resistance (Ohm/km at 20 °C)	24.5	24.5	24.5	24.5	24.5	24.5	—

Number of fibers	Number of conductors	Cable code (ordering code)	Delivery length	Packing
12	2	OPK-O-HCLTS-12(5x1.7)LTGEP+2x0.75mm2-xx-BK	2100 m ± 5%, 4200 m ± 5%	Solid wooden drum
12	4	OPK-O-HCLTS-12(5x1.7)LTGEP+4x0.75mm2-xx-BK	2100 m ± 5%, 4200 m ± 5%	Solid wooden drum
24	2	OPK-O-HCLTS-24(5x1.7)LTGEP+2x0.75mm2-xx-BK	2100 m ± 5%, 4200 m ± 5%	Solid wooden drum
24	4	OPK-O-HCLTS-24(6x1.7)LTGEP+4x0.75mm2-xx-BK	2100 m ± 5%, 4200 m ± 5%	Solid wooden drum
48	2	OPK-O-HCLTS-48(6x1.7)LTGEP+2x0.75mm2-xx-BK	2100 m ± 5%, 4200 m ± 5%	Solid wooden drum
48	4	OPK-O-HCLTS-48(8x1.7)LTGEP+4x0.75mm2-xx-BK	2100 m ± 5%, 4200 m ± 5%	Solid wooden drum
