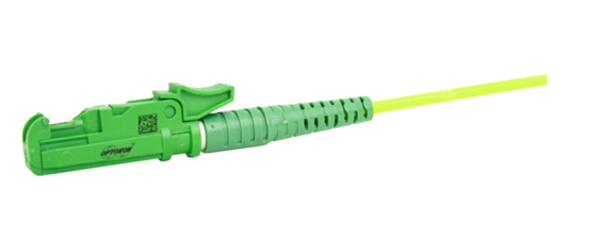

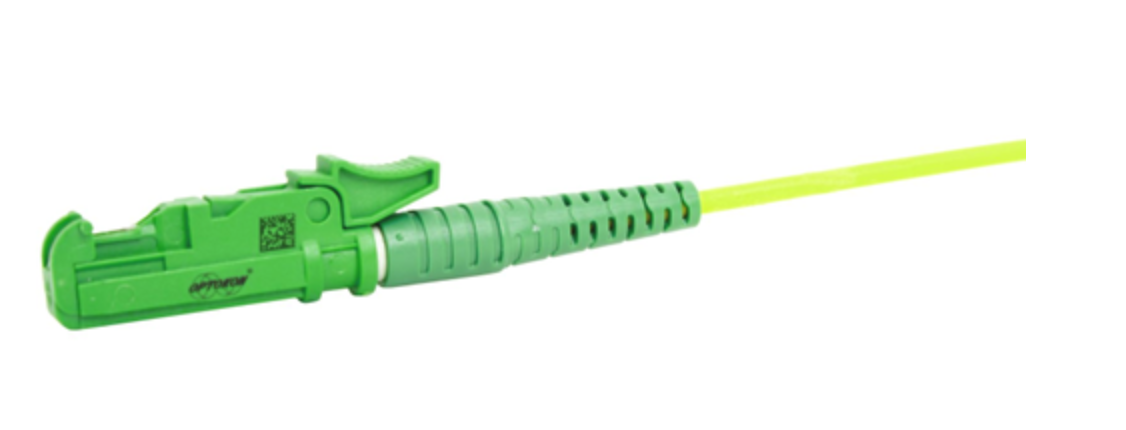

LSH Patchcord

LSH Patchcord

The LSH connector patchcords are offered for MM or SM applications with PC and APC polishing method. LSH integrated protective cap made from zinc alloy protects ferrule from dust and rules out any laser light emissions. The LSH connector is compatible with E2000TM connector standards. High power version available.

  • Features
  • Specifications
  • Application
  • Documents

•    Integrated protective cap protects ferrule from dust
•    Integrated spring for a guaranteed closing of the protective cap
•    Single mode and multimode versions available, PC and APC polishing
•    Full ceramic ferrule
•    Adjustable in 60° steps
•    Excellent for high packing density
•    Compatible with E2000TM standard

Insertion loss (IL)

(IEC 61300-3-4)

SM Ultra PC

Grade B

SM Ultra PC

Grade A

SM Angle PC Grade C

SM Angle PC Grade B

SM Angle PC

Grade A

SM Angle PC

Grade A+

0.12 dB typ

0.25 dB 97%

0.06 dB typ

0.15 dB 97%

0.25  dB typ

0.50 dB 97%

0.15  dB typ

0.25 dB 97%

0.06 dB typ

0.15 dB 97%

0.10 dB

max

Return loss (RL)

(IEC 61300-3-6)

>50 dB

>55 dB

>60 dB

>65 dB

>65 dB

>85 dB1

Tensile strength2

100 N

Operating temperature

-25°C to +70°C, conditioned by type of cable

Durability

min 500 cycles

Assembly procedure

glue and polish

Connection

physical contact

Input power

Standard 0.5 W, High power connector up to 4.5 W4

Lock mechanism

snap-on

Standards

IEC 61753, IEC 61754-15, EN 50377-8

Ferrule material

full ceramic zirconia

Connector body material

PBT

Adapter material

PBT, housing, slotted ceramic sleeve

Note:     1)     RL >85 dB measured with low coherence reflectometry (IEC 61300-3-6 method 3 OLCR), RL valid for patchcord length ≤ 1.5 m

            2)     Conditioned by the type of cable

            3)     MM: IL=0.15 dB typ, RL>30 dB

       4)     Grade A+ connector, 2 W long term operation at 1550 nm, increasing on 4.5 W during 170 hrs, connectors inspected and perfectly cleaned, with corresponding MFD and polishing angle

•    Telecom
•    LAN, WAN
•    CATV
•    Sensor Systems
•    Measuring Technique
•    Utilities, Railways
