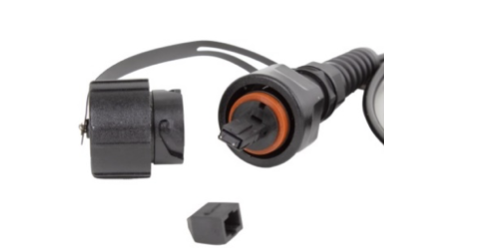

The OPTOKON introducing new effective low cost harsh environment connectors HE-XX series which are designed for Industrial networks, FTTH (Fiber to the Home), FTTA (Fiber to the Antenna), or any other harsh environmental projects. Pre connectorized cables significantly reduce cable installation time, saving money and accelerating FTTX subscriber connections.
HE-XX series
- Simple bayonet locking system
- IP67 protection for harsh environment
- Low Insertion Loss
- Proven design provides a hardened connector for outside plant deployment
- Single mode/Multimode

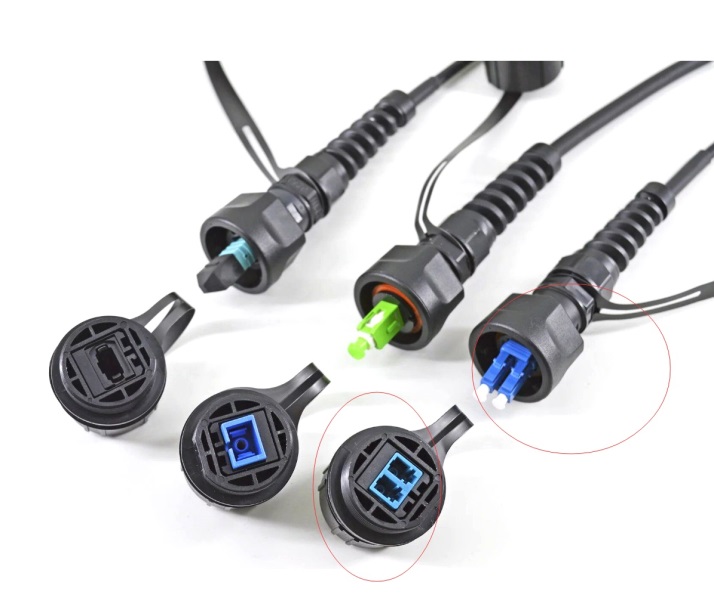

- SC, LC duplex, MTP hardened connector
- Connector is designed to install on Cable
- Environmentally-sealed connector housing permits rapid connection
- to external flush-mounted bulkhead adapter
- Dust cap included

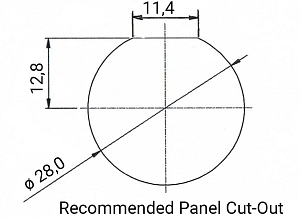

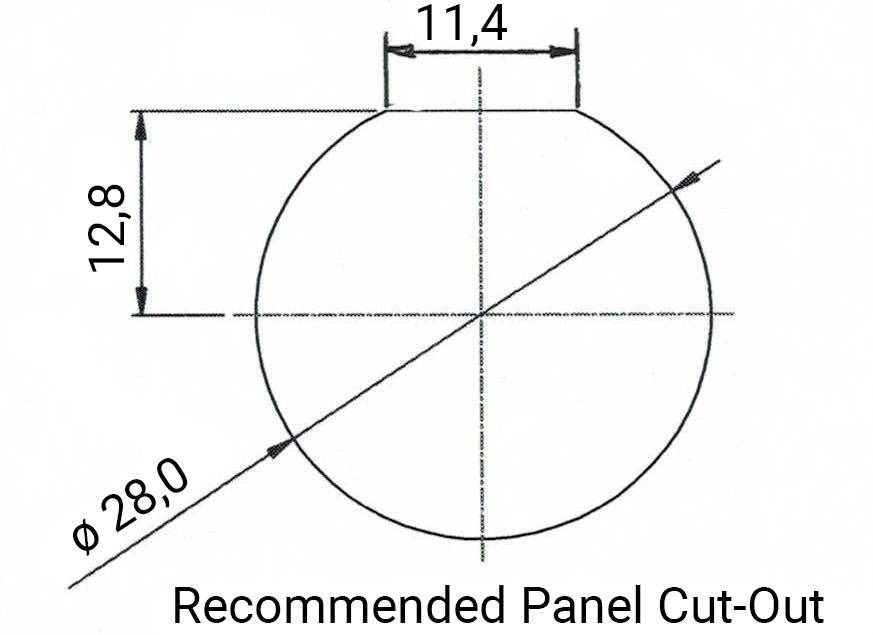

- Bulkhead panel mount or In-line adapters
- Robust design keeps connector intact during installation
| Insertion Loss | HE-LC series: 0.2 dB typical |
| Return loss | SM: > 50 dB typical for PC, MM: > 30 dB |
| Ferrule material | full ceramic zirconia |
| Assembly procedure | glue and polish |
| Connection | physical contact |
| Lock mechanism | bayonet locking system |
| Operating temperature | -40°C to +70°C |
| Durability | min 500 cycles (<0.2 dB typical change) |
| Standards | EN 61076-3-106, cable conforms to the requirements of STANAG 4290 |
| Environmental protection | IP67 |

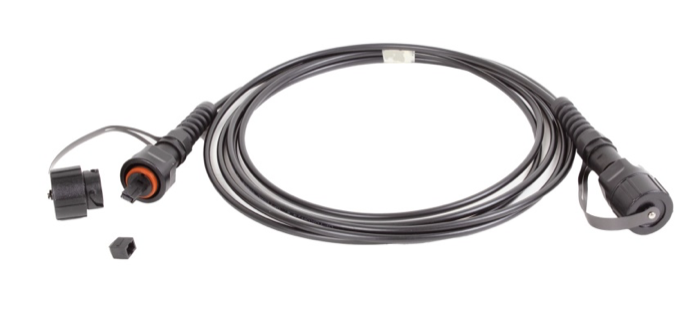

- HE-ULCD-LD2 S7A1-JC-010HE-ULCD cross cable, HE IP67 connectors, LD 2 fibers S7A1, 10 m

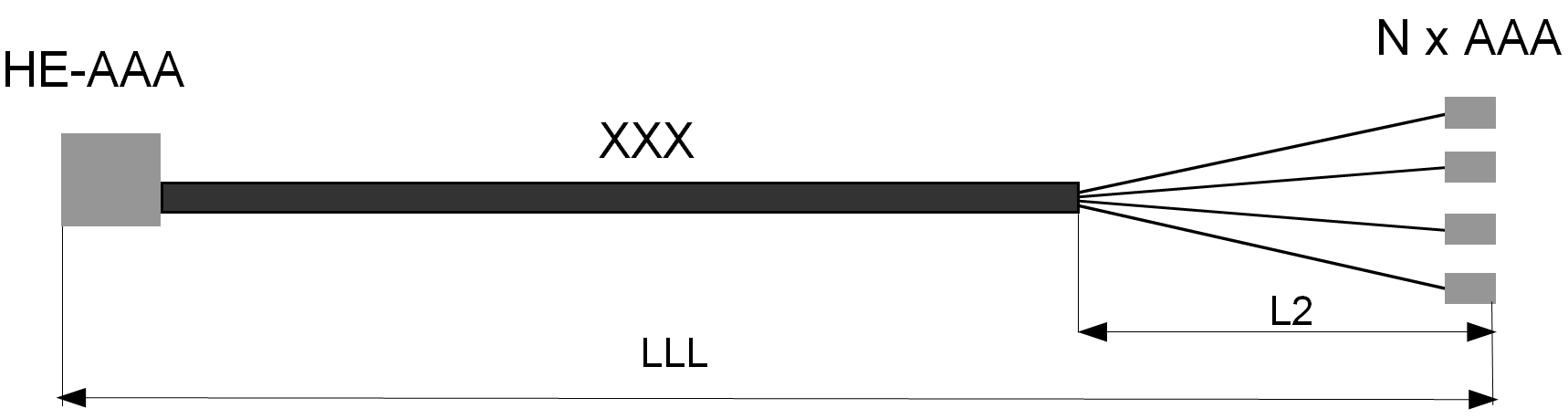

- HE-ULCD-2xUPC-LD2 S7A1-JC-0.5-003fanout cable, HE-ULCD to 2x FC/PC connectors, LD 2 fibers S7A1, 3 m
- HE-BN-LCD-01-BL bulkhead with duplex LC adaptor, Zirconia sleeve, SM, blue
- HE-BI-LCD-01-BL in-line with duplex LC adaptor, Zirconia sleeve, SM, blue
CON_01-14_EN-HE-IP67_Patchcord
