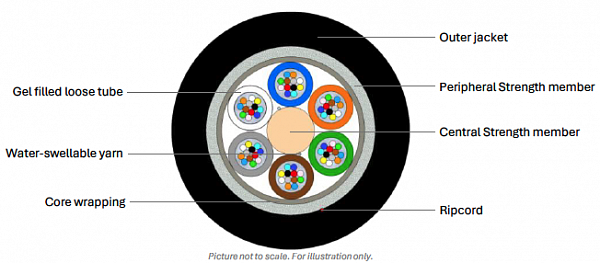

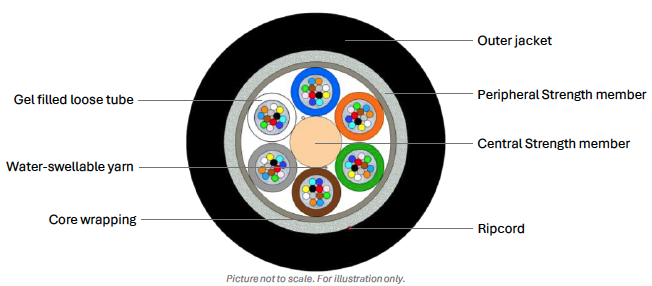

Outdoor Multitube Cable 12-288F (NC)

Full dielectric cable for external installation on cable trays or into duct by pulling or blowing

Parameter	Value
Fibre type	G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4
Fibre colour	EIA/TIA-598A
Tube colour	EIA/TIA-598A
Central strength member	FRP rod (coated if necessary)
Core wrapping	Water-swellable tape
Peripheral strength members	Water-swellable glass yarns
Ripcord	1× under outer jacket
Outer jacket material	UV-resistant black HDPE
Outer jacket thickness	1.1 mm

Parameter	12	24	48	60	72	96	144	288	Standard
Number of fibres	12	24	48	60	72	96	144	288
Number of fibres in tube	12	12	12	12	12	12	12	12
Tube count (layers)	1	2	4	5	6	8	12	9+15
Filler count	5	4	2	1	0	0	0	0
Nominal outer diameter (mm)	8.1	8.1	8.1	8.1	8.1	9.3	11.3	13.4
Calc. cable weight (kg/km)	53	54	55	56	74	76	107	138
Short-term tensile strength (N)	2500	2500	2500	2500	2500	5100	6600	4100	IEC 60794-1-101
Long-term tensile strength (N)	750	750	750	750	750	1500	2000	1200	IEC 60794-1-101
Short-term crush resistance (N/100 mm)	1500	1500	1500	1500	1500	1500	1500	1500	IEC 60794-1-103
Long-term crush resistance (N/100 mm)	700	700	700	700	700	700	700	700	IEC 60794-1-103
Max. impact loading (Nm)	10	10	10	10	10	10	10	10	IEC 60794-1-104
Min. bend radius not load (OD)	15	15	15	15	15	15	15	15	IEC 60794-1-111
Min. bend radius load (OD)	20	20	20	20	20	20	20	20	IEC 60794-1-111
Operating temperature range (°C)	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	IEC 60794-1-201
Storage temperature range (°C)	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	−40 to +70	IEC 60794-1-201
Installation temperature range (°C)	−15 to +50	−15 to +50	−15 to +50	−15 to +50	−15 to +50	−15 to +50	−15 to +50	−15 to +50	IEC 60794-1-201
Water tightness (1 m / 24 h)	No leakage	No leakage	No leakage	No leakage	No leakage	No leakage	No leakage	No leakage	IEC 60794-1-205
Class of fire reaction	Fca	Fca	Fca	Fca	Fca	Fca	Fca	Fca	EN 50575, EN 13501-6
