The MCNP Connector Network Panel is an economical rack mountable patch panel for use with splicing of manufactured pigtails, pre terminated cables and field-installable connectors. The cables are strain-relieved at the rear of the unit. The pivoting shelf can be equipped with either a splice tray holder or bend radius protection which guides, stores and organizes excess slack. This prevents damage to fibers prior to routing into couplings. The MCNP is used in installations where space is limited.

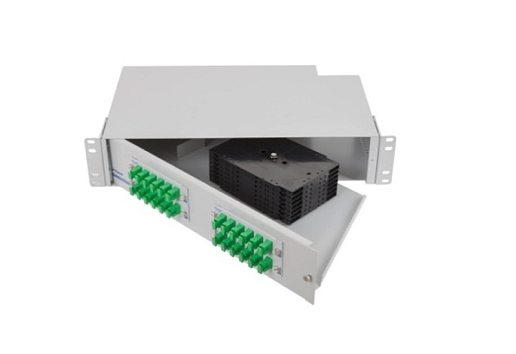

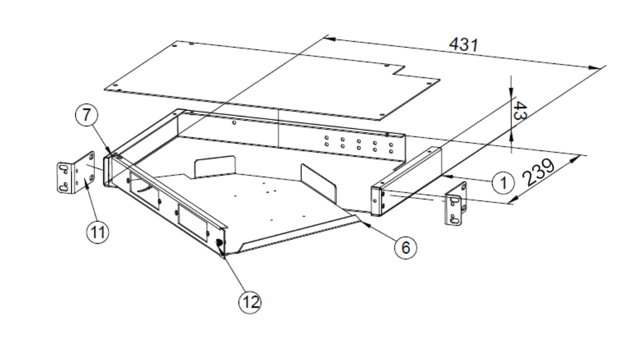

MCNP Rack Mount Connector Network Panel
- Splicing and termination optical cable in one box

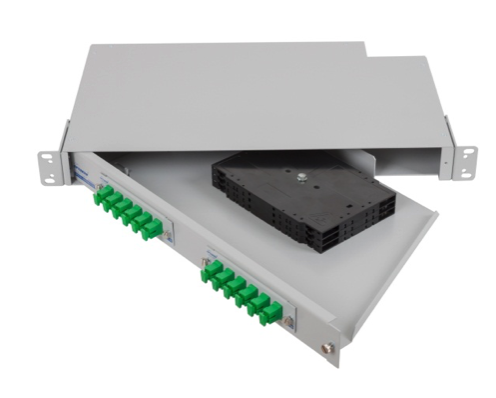

- Pivoting shelf eases connector routing and cable routing
- Extended (3 coupling panels per 1U) version available
- Version for installation of adaptors under angle
- Accommodates up to 48 fibers in 1 rack unit
- Splice cassette holder enables cable termination with the help of pigtail splicing
- Protection: IP20

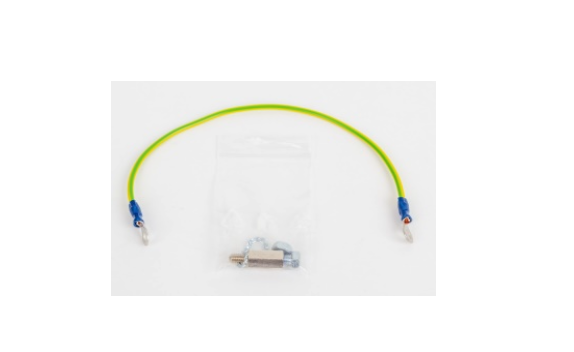

- Cable strain-relief and grounding provisions
- Accepts the industry's most common connector types
- FTTH use – microtubes holder included
- Passed seismic tests according to ASME standards
- Approved for Construction of Nuclear Power Plant Components
- Standard color: RAL 9006
- Color option: ADAPTA DX-7182-XW color based on saturated polyester resins – stainless steel look
- Operating temperature -40 to +85 °C1
|
PART NUMBER |
FIBER CAPACITY2+5 |
RACK UNITS |
DIMENSIONS (HxWxD) mm |
SHIP WGT (kg) |
|
|
CNPM-XX-063 |
CNPM-XX-083 |
||||
|
MCNP – 1S |
12 (24) |
16 (32) |
1 |
44 x 432 x 280 |
2.4 |
|
MCNP – 2S |
24 (48) |
32 (64) |
2 |
88 x 432 x 280 |
3.8 |
|
MCNP – 3S |
36 (72) |
48 (96) |
3 |
133 x 432 x 280 |
5.2 |
|
MCNP – 1E |
18 (36) |
24 (48) |
1 |
44 x 432 x 280 |
2.4 |
|
MCNP – 2E |
36 (72) |
48 (96) |
2 |
88 x 432 x 280 |
3.8 |
|
MCNP – 3V |
72 (144) |
96 (192) |
3 |
133 x 432 x 280 |
5.5 |
|
MCNP – 2A4 |
48 angled adaptors, no CNPM panels |
2 |
88 x 432 x 280 |
3.8 |
|
2) Splice Tray: CMS_01-09_EN-KNS Splice_trays
3) CNPM coupling panel: CMS_24-01_EN-CNPM
CNPM-XX-06 6 pcs ST, FC, SC, E2000, DLC ... adapters
CNPM-XX-08 8 pcs ST, FC, SC, E2000, DLC... adapters
4) MCNP-2A - special front panel with angle mount adaptors
- CNPM panels not used in this variant
- SC footprint adaptor types (SC, DLC, E2000, MT-RJ, etc.)
5) Fiber capacity depends on connector adaptor type, e.g. in the case DLC it is double capacity.
Under the condition that in splice trays then instead of standard protection sleeves there are used smaller and thinner sleeves and there are used 2 lines in one splice holder.
• Accepts the industry's most common connector types
• FTTH use – microtubes holder included
CMS_04-12_EN-MCNP
