The innovative LC design offers a form factor one-half the size of current industry standards, and simple features create a new definition of user-friendliness.
The LC connector is manufactured to meet EIA/TIA 568A, FOCIS 10, IEC 61754-20 and IEC 11801 specifications for optical performance and intermateability. The LC Duplex fits into the RJ-45 standard cutout and uses the smallest diameter cable jacket in the industry.

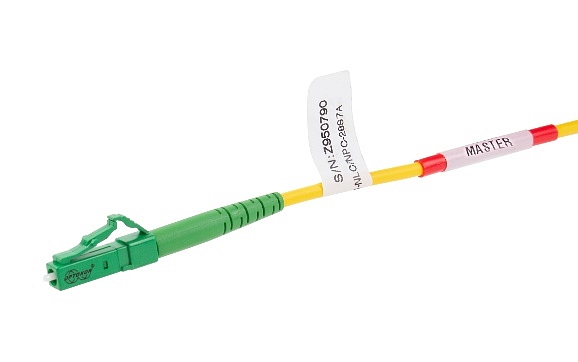

Master LC Patchcord
- one-half the size of current industry standards
- increases panel density – provides duplex connection in 50% less space
- duplex fits RJ-45 footprint
- available in MM and SM versions with Ultra and Angle (APC) polishing
- user-friendly audible latch to indicate proper mating
- simplex and duplex version available
- pull – proof 1.6 mm simplex mini-cord, 1.8 x 3.6 mm duplex minizip cable and duplex dualan cable diameter 2.9 mm

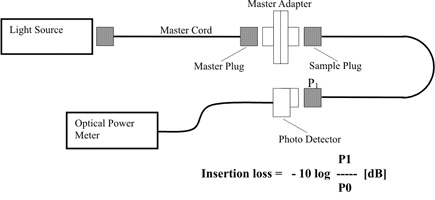

| Insertion loss (IL) (IEC 61300-3-34) |
SM Ultra PC Grade B |
SM Angle PC Grade B |
| 0.12 dB mean value 0.25 dB 97% |
0.12 dB mean value 0.25 dB 97% |
|

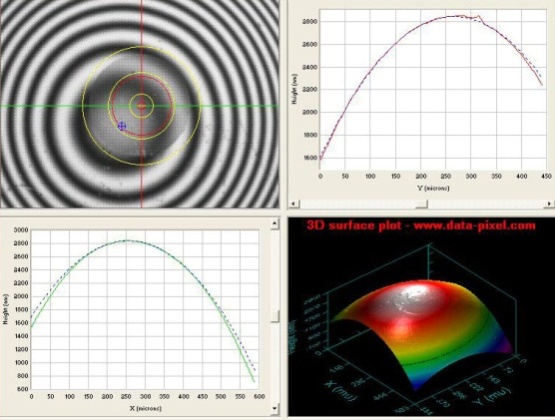

| Return loss (RL)1 (IEC 61300-3-6) |
>45 dB | >60 dB |
| Operating temperature2 | -30°C to +60°C | |
| Storage temperature | -40°C to +60°C | |
| Installation temperature | -5°C to +40°C | |
| Strain relief | 90 N | |
| Durability3 | min 1000 cycles | |
| Assembly procedure | glue and polish | |
| Connection | physical contact | |
| Lock mechanism | snap-on | |
| Standards | ISO/IEC 11801, TIA 568A, IEC 61754-20, ČSN/EN/IEC 61754-15, EN 50377-7 | |
| Ferrule material | full ceramic zirconia | |
| Connector material | thermoplastic | |
| Adapter material | polymer composite, zirconia sleeve |
Note: 1) Mated connectors, over full temperature range
2) ≤ 0.07 dB at 1310/1550 nm
3) ∆ IL ≤ 0.1 dB
- Telecom
- LAN, WAN
- CATV
- Sensor systems
- Measuring Technique
- Utilities
