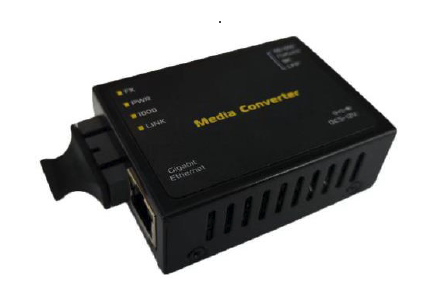

CS-1000C, Mini size 1G media converter

CS-1000C, Mini size 1G media converter

The CS-1000C series are small size Gigabit Ethernet - Fiber converters designed to be media interfaces between 10/100/1000Base-T Ethernet copper pairs cable and 1000Base-X fiber optics cable. They feature a RJ-45 connector, and a pair of fiber optic connectors. The Gigabit Fiber Converters give you the freedom to extend your 10/100/1000 Mbps cabling distance by allowing connectivity 2 kilometers for multimode optical fiber and 20 kilometers using single mode optical fiber.

LED indicators signal the power status of the converter, the Ethernet port and the FX port activity.

  • Features
  • Specifications
  • Application
  • Documents
  • 1000BASE-X Fiber to 10/100/1000BASE-X UTP Converter
  • Single mode and multimode application
  • LED signalization
  • Flow control enable / disable
  • Jumbo frame 9K support
  • Auto-Cross over for MDI/MDIX in TP port
  • Auto-Negotiation or Manual mode in TP port
  • Support Link Fault Pass Through (LFP) Function

Parameter Value
Standards IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-X
Packet length Jumbo frame 9K support
Mode Store and Forward Switch Mode ¹
Fiber cable Multimode: 50/125, 62.5/125 μm; Single mode: 9/125 μm
Fiber connector Duplex SC
UTP connector RJ-45
LED display PWR; TPL LINK/ACT, 1000; Fiber LINK/ACT
Dimensions 50 × 69 × 25 mm
Weight 100 g
DC power input connector DC, 5 to 12 V, 5.5×2.1 mm
Output of AC/DC power adaptor 5 V DC / 1 A, 12 V DC / 1 A
MTBF More than 50,000 hours, in accordance with the standard of telecom operation
Temperature (operation) 0 to +50 °C
Temperature (storage) −40 to +85 °C
Humidity 5 to 95% non-condensing
RoHS compliant
  • Security & CCTV: linking cameras and recorders over longer runs; perimeter and parking lots.
  • Access control & building systems: badge readers, intercoms, elevators, BMS/HVAC panels.
  • Enterprise & campuses: office floors, classrooms, dorms; inter-building links.
  • Industrial sites: production lines, kiosks, terminals, legacy controllers.
  • Utilities & SCADA: water/wastewater plants, substations, pumping stations.
  • Transportation hubs: airports, stations, tunnels; signage and monitoring.
  • Retail & hospitality: POS lanes, back-office links, digital signage.
  • Healthcare & education: wards, labs, labs/classroom networks.
  • Government & defense facilities: control rooms, checkpoints, field posts.
  • Smart city: traffic cabinets, public Wi-Fi backhaul, city surveillance.
