Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction!

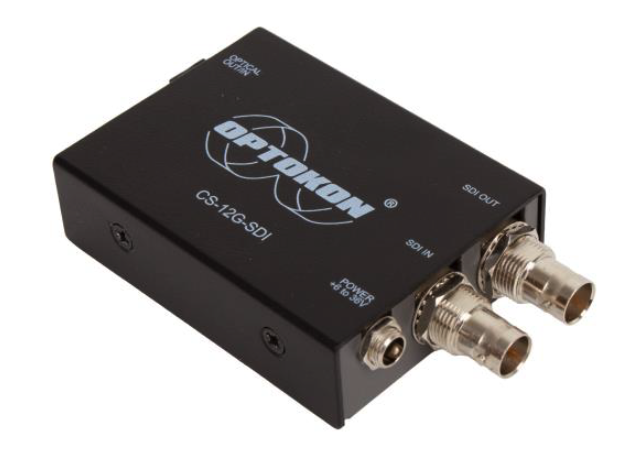

CS-12G-SDI SDI, Mini Converter Optical Fiber 12G
The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.
| Item | Details |
|---|---|
| SDI video inputs | 1 × SD/HD/12G-SDI video and 1 × Optical Fiber input |
| SDI video outputs | Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber |
| Optical fiber connection (optional) | 1 × SMPTE optical fiber SFP socket; SFP module sold separately |
| Optical fiber video inputs | 1 × 10-bit SD/HD/12G-SDI switchable |
| Optical fiber video outputs | Automatically matches the SD, HD and 12G-SDI video input |
| Optical fiber audio inputs | 16-channel embedded |
| Optical fiber audio outputs | 16-channel embedded |
| Multi-rate support | Yes |
| Auto detection | SD, HD or 12G-SDI |
| Reclocking | Yes |
| Category | Values |
|---|---|
| SD video standards | 525i59.94 NTSC, 625i50 PAL |
| HD video standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K video standards | 2K DCI 23.98p, 24p, 25p; 2K DCI 23.98PsF, 24PsF, 25PsF |
| 4K video standards | 4K DCI 23.98p, 24p, 25p |
| Ultra HD video standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI compliance | SMPTE 259M, 292M, 296M, 424M, 425M, ST-2081; ITU-R BT.656, BT.601; SMPTE 297M for optical fiber SDI |
| SDI video rates | Auto-detects SD, HD, Level A/B 3G-SDI, 6G-SDI, 12G-SDI |
| SDI video sampling | 4:2:2 and 4:4:4 |
| SDI audio sampling | 48 kHz, 24-bit |
| SDI color precision | 4:2:2 and 4:4:4 |
| SDI color space | YUV and RGB |
| SDI auto switching | Automatically detects SD, HD or 12G-SDI |
| ASI support | Yes |
- Broadcast & TV: studio–control room links, OB vans, intercom/return video.
- Live events & concerts: stage-to-front-of-house video, LED wall feeds, camera runs.
- Sports venues: long camera drops, replay/scoreboard feeds, tunnel/locker-room links.
- Corporate AV: town halls, conference rooms, campus building interconnects.
- Education: lecture capture, distance learning between classrooms/buildings.
- Houses of worship: sanctuary to overflow rooms, recording/streaming paths.
- Post-production: suite–machine-room connectivity, color/grading review routes.
- Film sets: video village, director’s monitor feeds, DIT cart to stage.
- Esports & gaming arenas: caster, player, and big-screen signal distribution.
- Government & public safety: operations centers, briefing rooms, training facilities.
- Healthcare: OR/teaching theater video, lab and seminar spaces.
- Museums & theaters: exhibit displays, backstage monitoring, projection booths.
- Rental & staging: temporary long-run links for events and trade shows.
- Remote sites & campuses: building-to-building fiber links for UHD signals.
- Redundant paths: primary/backup routes in critical workflows.
