Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction.
The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices.
You can install any standard 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.

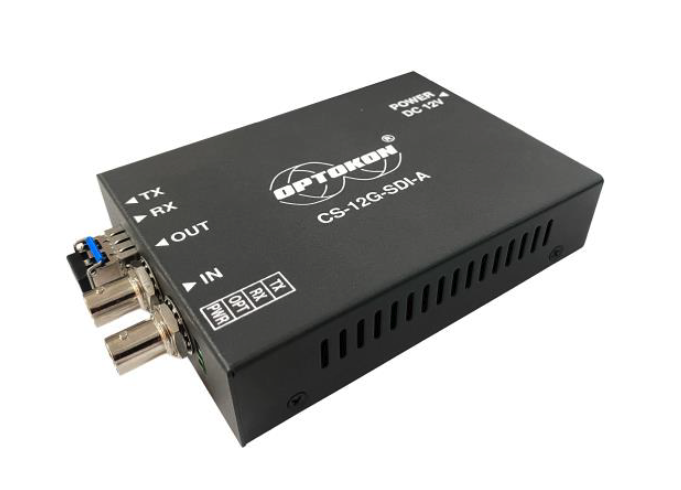

CS-12G-SDI-A SDI, Mini Converter Optical Fiber 12G
- Support 1 channel 12G-SDI to LC single mode optical fiber output, 1 channel LC optical fiber input converter to 12G-SDI
- Support 12G-SDI input and output, support 6G/3G/HD/SD-SDI bidirectional, 2-core fiber transmission
- SFP standard optical fiber connector, duplex connection (LC connector)
- LED indicating power and signal input
- Support standard 19-inch 3U subrack with 8 slots and 220V AC input power supply
- 12V DC external power adapter
| Video Formats | 270 Mbps - 12 Gbps |
|---|---|
| Video Input Digital | 1-Channel Independent 12G-SDI connector, SMPTE-259/292/424/2081/2082 1-Channel Independent Single mode LC fiber connector, SMPTE-297/259/292/424/2081/2082 Optical Power: -5 dBm (Min.), 0.5 dBm (Max.) Overload Power: -2 dBm (Min.) Extiction Ratio: 5.4 dB (Min.) |
| Nominal Wavelength | Tx: 1260 nm (Min.), 1310 nm (type), 1360 nm (Max) |
| Video output | 1-Channel independent 12G-SDI BNC connector |
| Digital | SMPTE-259/292/424/2081/2082 1-Channel independent single model LC fiber connector, SMPTE-297/259/292/424/2081/2082 Nominal wavelength: Tx 1260 nm (Min.), 1310 nm (Type), 1360 nm (Max.) Rx 1260 nm (Min.), 1620 nm (Max.) Optical Sensitivity: -10 dBm (Min. 12Gbps), -14 dBm (Min. 3 Gbps) Optical Power: -5 dBm (Min), 0.5 dBm (Max.) Overload Power: -2 dBm (Min.) Extinction Ratio: 5.4dB (Min.) |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps 11.868 Gbps, 11.880 Gbps-Auto Select All other rates are passed through and not reclocked |
| Size | 120 x 88 x 27 mm (L-without connectors x W x H), 138 x 88 x 27 mm (L-with BNC connectors) |
| Weight | 0.25 kg |
| Power Supply | 6W Max. 12V DC |
| Environment | Operating Temperature 0°C to +40°C Operating humidity 10% - 90%, non-condensing Storage temperature -40°C to +60°C Operating Altitude: <3000 meters |
- Broadcast TV: studio–control room links, OB vans, master control, DVB-ASI backhaul
- Live events: concerts, festivals, conferences, LED wall and IMAG feeds
- Sports venues: camera drops, replay/scoreboard, tunnel and locker-room routes
- News & ENG: field contribution, remote studio hits, pop-up live shots
- Post-production: suite–machine room interconnects, color/grading review paths
- Corporate AV: town halls, multi-building campuses, training and all-hands
- Education: lecture capture, distance learning, auditorium to overflow spaces
- Houses of worship: sanctuary to broadcast/streaming and overflow rooms
- Government & public safety: operations centers, press briefings, training facilities
- Theaters, museums, attractions: projection booths, exhibits, backstage monitoring
- Rental & staging: temporary UHD signal transport for shows and trade fairs
ACT_14-25_EN-CS-12G-SDI-A
